GrouptekProduct sheet · Quantel Medical VITRA 689
Quantel Medical

VITRA 689

TreatmentRetina Lasers

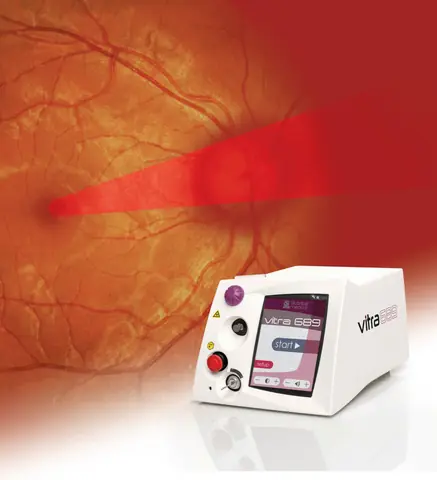

Next-generation red 689 nm laser for photodynamic therapy (PDT).

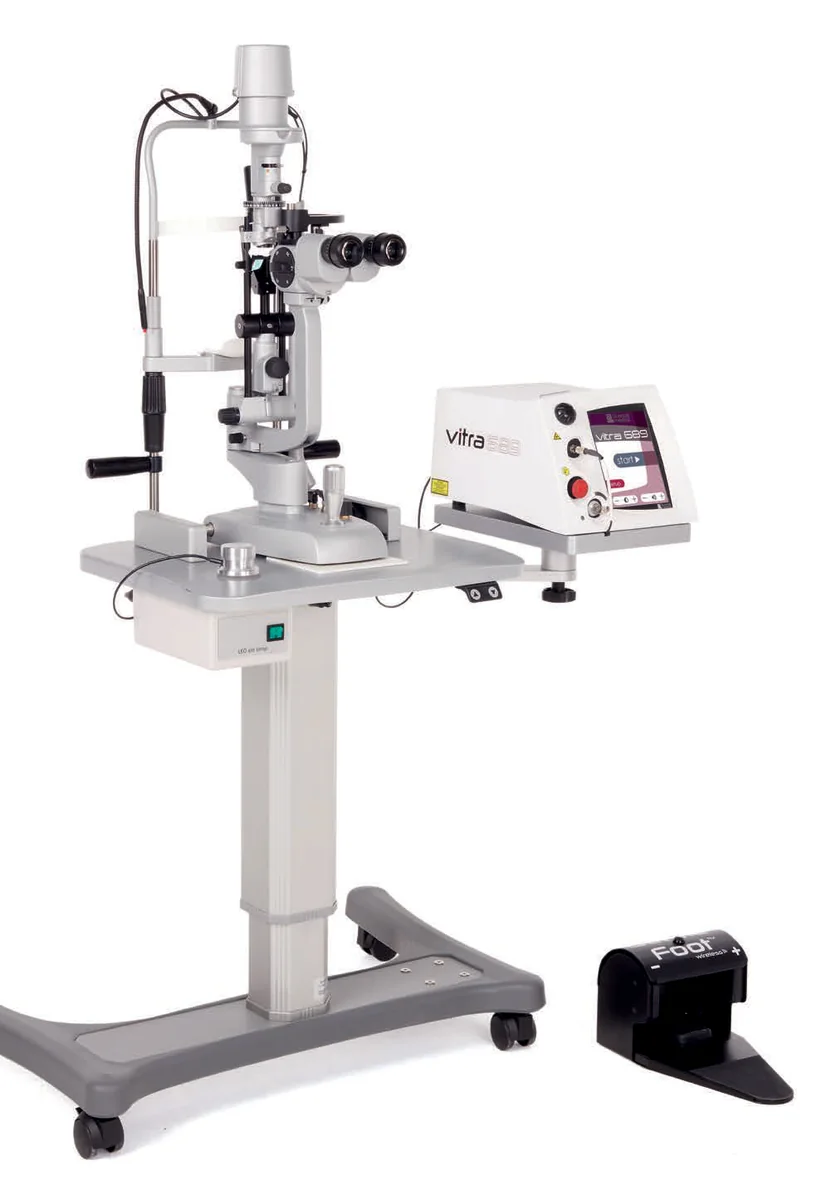

VITRA 689 is a compact semiconductor diode laser at 689 nm for photodynamic therapy. It mounts on a slit lamp with a motorized zoom adapter, and output power is variable to meet 600 mW/cm² at the selected spot size.

Brochure PDF · 1.4 MB

Key features

  1. 01

    PDT wavelength

    Semiconductor laser diode at 689 nm ± 3 nm, the red wavelength used for photodynamic therapy.

  2. 02

    Motorized zoom

    Spot size continuously adjustable from 1200 to 5400 µm (up to 8000 µm with a magnifying contact lens).

  3. 03

    Fits existing slit lamps

    Compatible with the Quantel Medical slit lamp, Haag-Streit 900 BM & BQ and clones.

  4. 04

    Compact and simple

    5.6 kg, air cooled, 100–240 VAC power. Designed and manufactured in France.

Who it's for

Ideal for

  • Retina specialists
  • Hospitals

Clinical uses

  • Photodynamic therapy (PDT)

Technical specifications

VITRA 689

Laser source
Semiconductor laser diode
Wavelength
689 nm ± 3 nm
Output power
Variable to meet 600 mW/cm² at selected spot size
Maximum power
400 mW
Exposure time
83 s
Aiming beam
650 nm
Size
18 (H) × 19.5 (W) × 30 (D) cm
7.1″ (H) × 7.7″ (W) × 11.8″ (D)
Weight
5.6 kg – 12.3 lbs
Cooling
Air
Power requirements
100 to 240 VAC, 350 VA, 50/60 Hz

Slit lamp adapters

Slit lamp compatibility
Quantel Medical slit lamp, Haag-Streit 900 BM & BQ and clones
Zoom
Motorized
Spot size
Continuously adjustable from 1200 to 5400 µm (up to 8000 µm with a magnifying contact lens)
Weight
0.9 kg – 1.98 lbs

Source: Quantel Medical brochure. Specifications are subject to change without notice. Open the original brochure.
