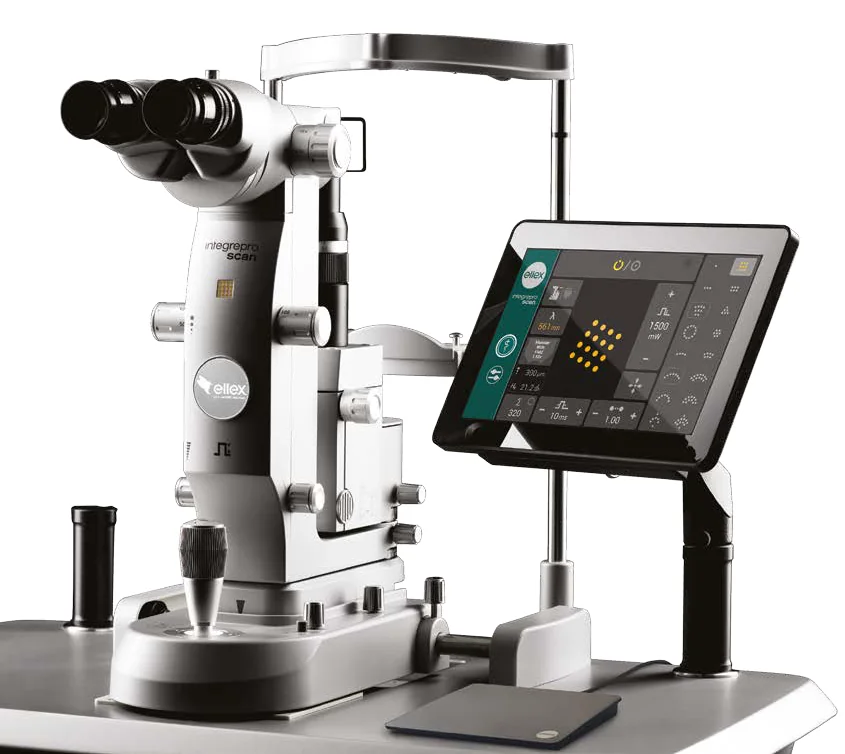

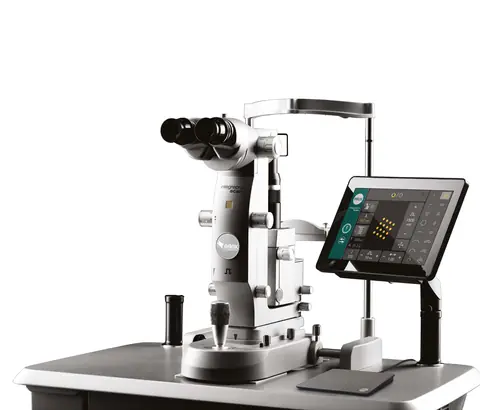

Product sheet · Ellex Integre ProIntegre Pro & Integre Pro Scan
All-in-one retinal photocoagulation laser and slit lamp, with single-spot and pattern scanning modes.
Integre Pro combines the laser and a purpose-built slit lamp in one system for retinal photocoagulation, from focal treatment in the macula to panretinal photocoagulation (PRP) in the periphery. Choose Integre Pro (SingleSpot) or Integre Pro Scan (adds Pattern Scanning), in a green, yellow or dual yellow-red wavelength configuration.
Key features
- 01
Choice of wavelengths
Green (532 nm), Yellow (561 nm) or Yellow-Red (561 nm + 670 nm) configurations to treat a wide range of retinal conditions.
- 02
Pattern scanning for fast PRP
Integre Pro Scan uses short 10–20 ms pulses in customizable patterns (line, square, circle, triangle and more): full PRP in one session, better tolerated by patients, with less heat diffusion to the retina.
- 03
Uniform energy, no hotspots
A proprietary dual-mode laser cavity delivers uniform energy across the full spot diameter for homogeneous, predictable burns.
- 04

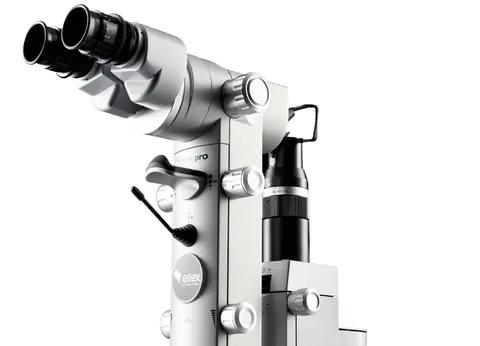

Built-in slit lamp
The purpose-built slit lamp channels the laser directly through its optics for better visualization and illumination, optimized for the posterior segment.
- 05
Designed for the user
Touchscreen tablet and track pad for quick adjustment of power, duration, pattern and size. Spot size, power, shot duration and micromanipulator are all at the doctor's fingertips.
Who it's for
Ideal for
Clinical uses
- Panretinal photocoagulation (PRP)
- Focal treatment in the macular area
- Retinal photocoagulation for a wide range of retinal conditions
Technical specifications
Common specifications
- Laser source
- Solid-state laser diode and cavity
- Wavelength configurations
- Yellow-red: 561 nm and 670 nm
Yellow: 561 nm
Green: 532 nm - Power at the fiber port
- Red: 1 W · Yellow: 1.5 W · Green: 1.5 W
- Power at the cornea
- Red: 50–1000 mW · Yellow: 50–1500 mW · Green: 50–1500 mW
- Aiming beam
- Red 635 nm, adjustable intensity
- Magnification
- 6x, 10x, 16x, 25x, 40x
- Electrical requirements
- 100–240 VAC, 50/60 Hz, 800 VA
- Cooling
- Air cooled
Integre Pro vs Integre Pro Scan
| Feature | Integre Pro | Integre Pro Scan |
|---|---|---|
| Exposure time | 10 ms to 8.0 s | Pattern Scanning mode: 10 to 30 ms SingleSpot mode: 10 ms to 8.0 s |
| Spot size | 50 to 1000 µm, continuously variable | Pattern Scanning mode: 100 to 500 µm, continuously variable SingleSpot mode: 50 to 1000 µm, continuously variable |
| Repeat mode | 50 ms to 1.0 s | Pattern Scanning mode: N/A SingleSpot mode: 50 ms to 1.0 s |
| Weight | 32 kg / 71 lbs (laser only) | 35 kg / 77 lbs (laser only) |
| Dimensions (H × W × D) | 62 × 76 × 47 cm / 24 × 30 × 19 in (laser only) | 62 × 76 × 47 cm / 24 × 30 × 19 in (laser only) |
Source: Ellex brochure. Specifications are subject to change without notice. Open the original brochure.
