GrouptekProduct sheet · Quantel Medical Integre LIO
Quantel Medical

Integre LIO

TreatmentRetina Lasers

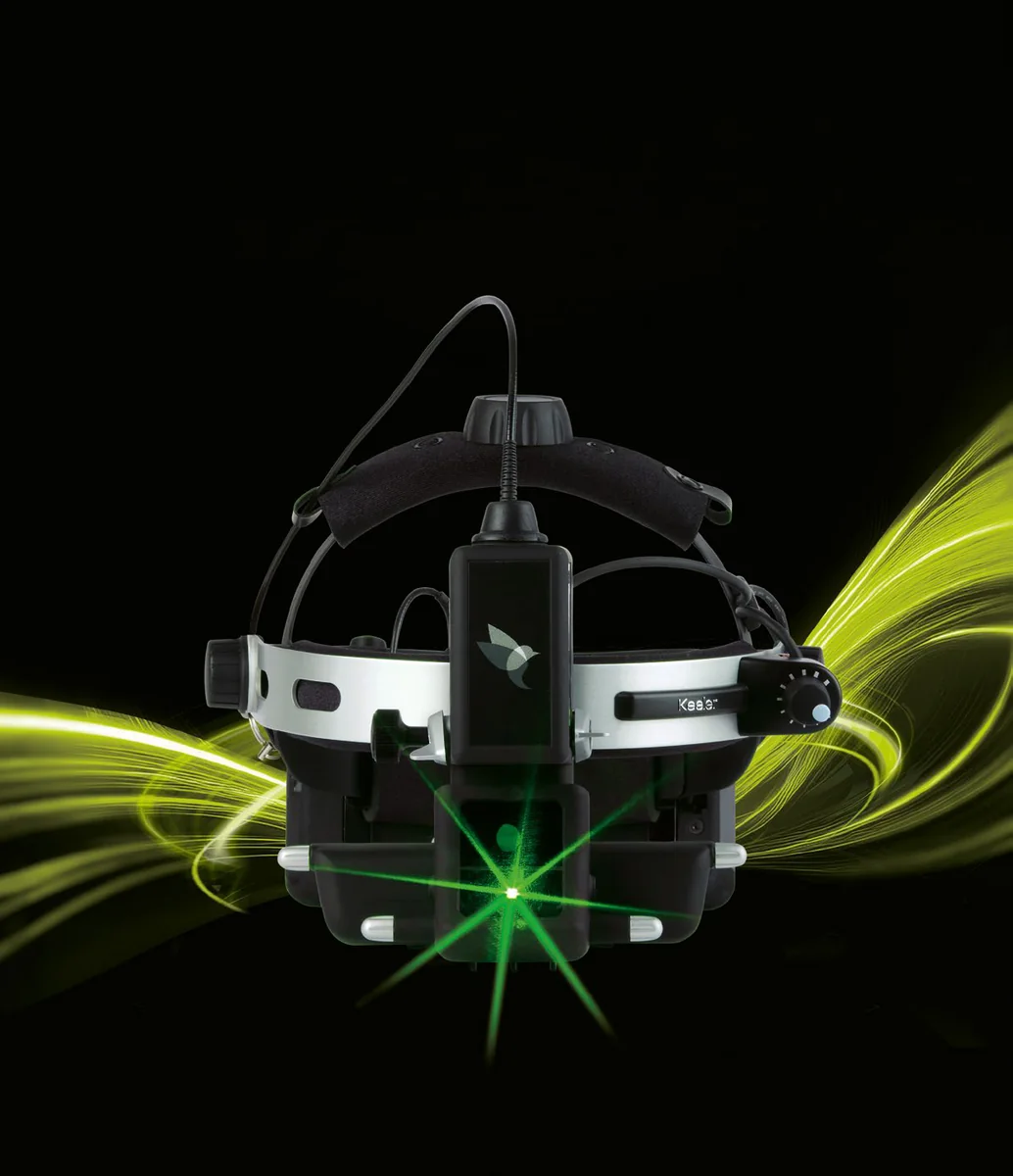

Truly wireless 532 nm green laser indirect ophthalmoscope with a heads-up display.

Integre LIO is a laser indirect ophthalmoscope using direct laser diode technology at 532 nm (green). The headset and Bluetooth footswitch run on rechargeable batteries for a full day of use, treatment settings appear in the right eyepiece, and everything packs into a wheeled suitcase.

Brochure PDF · 452 KB

Key features

  1. 01

    Truly wireless

    No cable between headset and footswitch. The footswitch connects over Bluetooth® Low Energy and has its own 4.2″ screen.

  2. 02

    Full day on one charge

    Long-lasting rechargeable batteries in both the headset and the footswitch.

  3. 03

    Heads-up display

    Treatment settings are displayed in the right binocular, so the doctor never has to look away from the patient.

  4. 04

    Direct green laser diode

    532 nm green laser, up to 1000 mW at tissue, with a 635 nm aiming beam and 1100 µm spot.

  5. 05

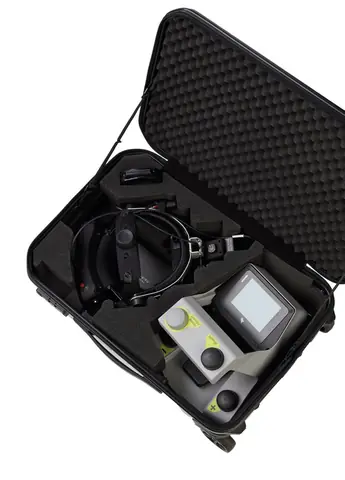

    Portable

    Supplied with a wheeled suitcase: 7.7 kg in total with the product inside.

Who it's for

Ideal for

  • Retina specialists
  • Paediatric ophthalmologists
  • Hospitals & operating rooms

Clinical uses

  • Retinal laser photocoagulation with an indirect ophthalmoscope

Technical specifications

Laser indirect ophthalmoscope

Technology
Laser diode
Wavelength
532 nm green
Maximum power
1000 mW (at tissue)
Pulse duration
0.01 s to 1 s
Repeat intervals
0.1 s to 3 s
Aiming beam
635 nm
Spot size
1100 µm
Heads-up display
Treatment settings displayed in the right binocular
Size
21 (H) × 22 (W) × 37 (D) cm
8.27″ (H) × 8.66″ (W) × 14.57″ (D)
Weight
1 kg – 2.20 lbs unpacked
Cooling
Air cooled

Footswitch

Wireless communication
Bluetooth® Low Energy (BLE)
Screen size
4.2″
Size
17 (H) × 24 (W) × 28 (D) cm
6.70″ (H) × 9.45″ (W) × 11.02″ (D)
Weight
2.5 kg – 5.51 lbs unpacked
Battery
Long-lasting rechargeable batteries (footswitch and headset). Full day of use on a single charge.
External power supply
2.8 m / 9.19 ft length cable
Power requirements
100 to 240 VAC, 50/60 Hz, 1 A

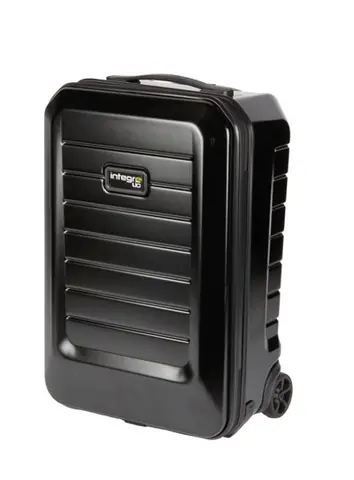

Suitcase

Size
55 (H) × 36.6 (W) × 23 (D) cm
21.65″ (H) × 14.41″ (W) × 9.05″ (D)
Weight
3.6 kg – 7.94 lbs (empty)
7.7 kg – 16.98 lbs (with product)

Source: Quantel Medical brochure. Specifications are subject to change without notice. Open the original brochure.
