GrouptekProduct sheet · Forus Health 3nethra neo
Forus Health

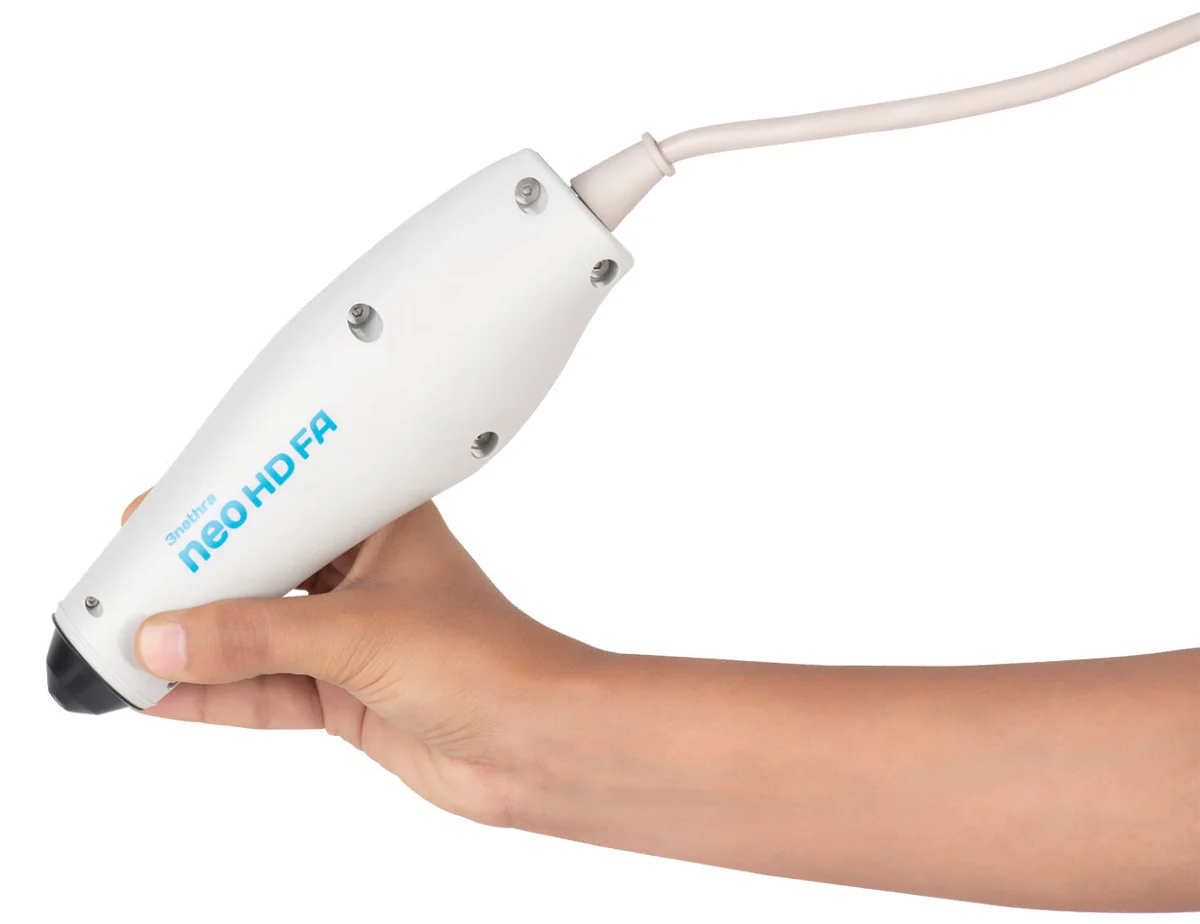

3nethra neo HD FA

DiagnosticRetinal Cameras

Portable 150° ultra-wide-field retinal camera with fluorescein angiography, for newborns and ROP.

3nethra neo HD FA is a compact, portable mydriatic wide-field imaging system for photo-documenting eye disease in newborn infants. It captures colour and fluorescein angiography (FA) retinal images over a 150° field. Ultra-wide-field FA can reveal peripheral neovascularization and active leakage in infants with persistent ROP. A 3nethra neo HD variant without FA is also available.

  • 150°field of view
  • 20 MPsensor
  • 300 ghandheld unit
Brochure PDF · 651 KB

Key features

  1. 01

    150° ultra-wide field

    Captures the peripheral retina, where ROP is staged and treated.

  2. 02

    Fluorescein angiography

    FA mode with automatic filter switch shows peripheral neovascularization and active leakage.

  3. 03

    20 MP sensor

    5472 × 3648 pixel, 24-bit colour images that give objective evidence for documentation and follow-up.

  4. 04

    Made for the NICU

    300 g pen-holder-grip handheld unit, foot-pedal focus and light control, and an optional NICU trolley table.

  5. 05

    Telemedicine compatible

    Share images with remote specialists for ROP screening programmes.

  6. 06

    Three imaging modes

    Colour fundus, FFA and cornea.

Who it's for

Ideal for

  • Neonatal intensive care units (NICU)
  • Paediatric ophthalmologists
  • Retina specialists
  • ROP screening programmes

Clinical uses

  • Retinopathy of prematurity (ROP) screening and documentation
  • Fluorescein angiography in infants
  • Paediatric retinal imaging
  • Anterior segment (cornea) imaging

Technical specifications

Product specifications

Imaging modes
Colour fundus, FFA and cornea
Field of view
150 degrees when measured from the center of the eye
Minimum pupil diameter
4.0 mm
Working distance (fundus)
0 mm (contact imaging)
Light source
White and blue LED, intensity control via foot pedal
Focusing method
Foot pedal as well as software controlled from UI
FFA filter switch
Automatic
Camera resolution
5472 × 3648 pixels, 24-bit colour
Universal screening
Software-controlled aperture for universal screening
Power supply
AC 100–240 V, 50/60 Hz (DC power adapter 5 V/5 A)
Power consumption
< 12 W
Dimensions of handheld unit
210 (L) × 70 (W) × 60 (H) mm
Weight of handheld unit
300 g (550 g with cable)

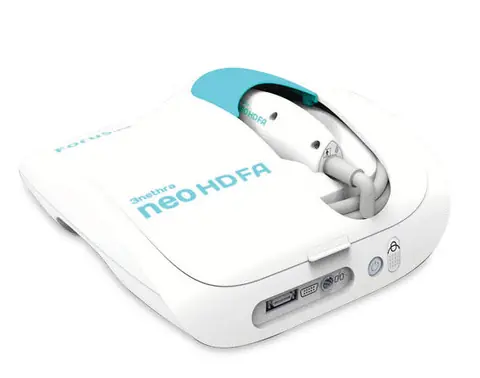

Dimensions of transport package
650 (L) × 430 (W) × 300 (H) mm
Weight of transport package
12 kg
Operating environment
Temperature: 10–30 °C
Humidity: 30–90% (non-condensing)
Atmospheric pressure: 80–106 kPa
PC / laptop requirement
MS Windows 10 64-bit laptop/desktop with i5 processor 2.4 GHz or higher, 16 GB RAM or higher, 500 GB or more disk space, full HD display (1920 × 1080), USB 3.0. Must conform to IEC 60950 Ed 2.0 or equivalent; a CE marked computer with protective earth mains connection is recommended.
Optional trolley table for NICU
Recommended size: 700 (L) × 500 (W) × 640–800 (H) mm
3nethra neo HD variant
Same specifications, without FA: no blue LED or FFA filter switch

Source: Forus Health brochure. Specifications are subject to change without notice. Open the original brochure.
