GrouptekProduct sheet · Optomed Lumo
Optomed

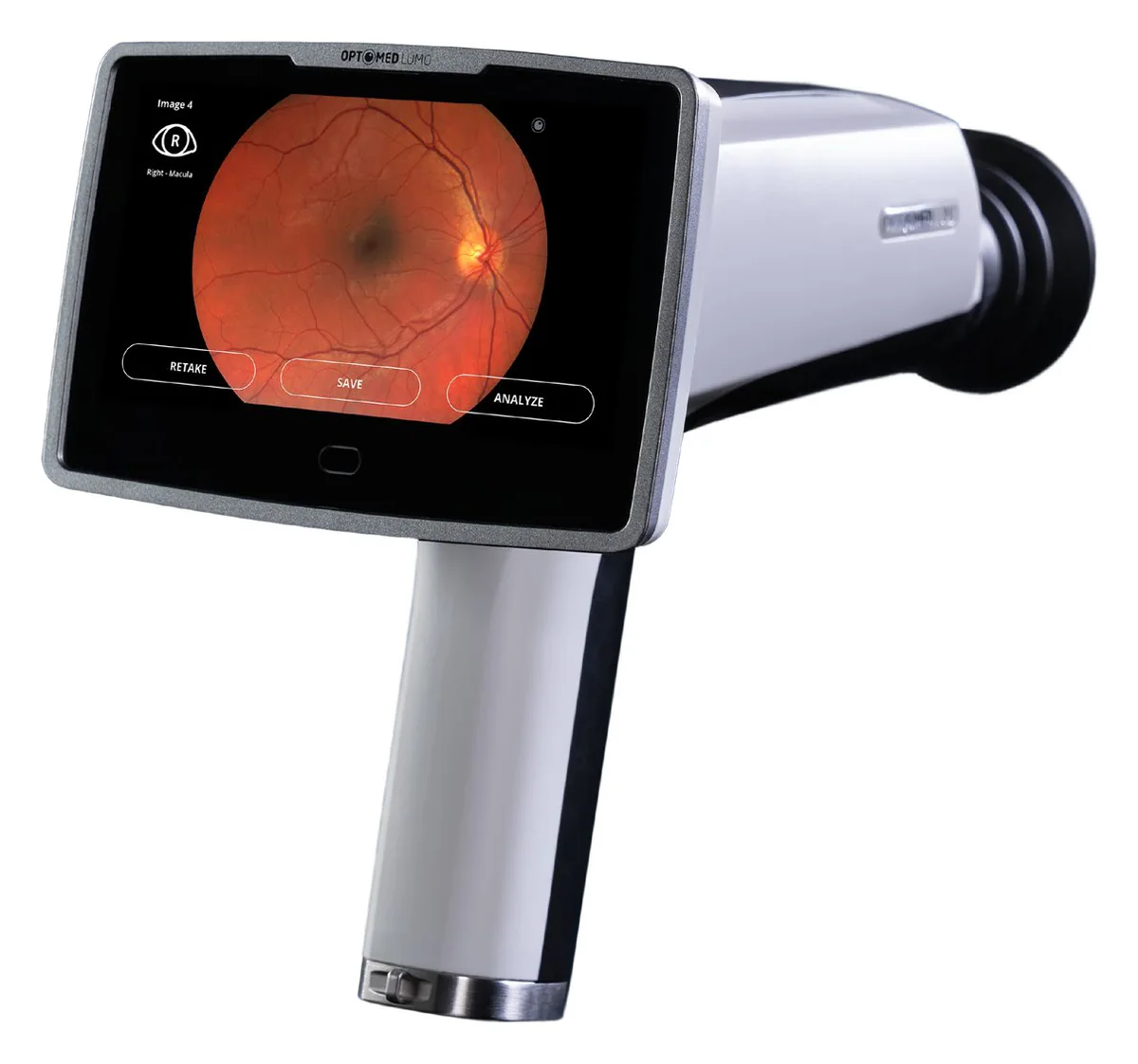

Optomed Lumo®

DiagnosticRetinal Cameras

Handheld non-mydriatic fundus camera with built-in AI: one-minute retinal screening anywhere.

Optomed Lumo is a handheld, non-mydriatic fundus camera that captures 50° retinal images without dilation. With a cloud connection for AI analysis, wireless DICOM and an optional desktop base, it suits everything from large screening programmes and primary care to emergency rooms and children's retinal exams. Any healthcare professional can use it.

  • 50°field of view
  • 12 MPresolution
  • ~1 minon-the-spot screening
Brochure PDF · 11.1 MB

Key features

  1. 01

    1-minute on-the-spot screening

    Fast 50° image capture without dilation, AI analysis delivered back to the camera, and results integrated into hospital systems.

  2. 02

    AI on board

    A cloud connection enables on-the-spot image analysis with selected AI algorithms, from patient data through to AI results.

  3. 03

    Image quality

    High-Contrast Optical Design™ and a 12 MP low-noise sensor help detect even small early-phase retinal changes.

  4. 04

    Easy for anyone

    Large 5″ touchscreen, Smart Autofocus™, intuitive user guidance and programmable imaging sequences.

  5. 05

    Handheld or desktop

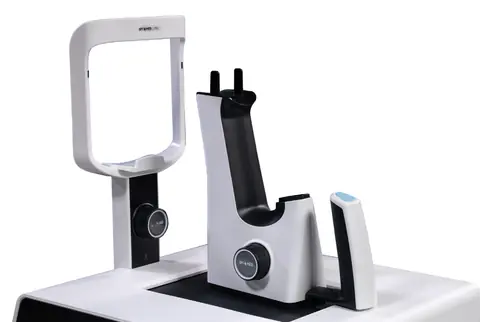

    Fully portable, with an optional Travel Pack, or used as a stationary camera on the Lumo Desktop Base.

  6. 06

    Connected and secure

    Wireless DICOM to PACS, high-speed USB and WLAN, the Optomed mobile app, AES-256 encryption, PIN code and user authentication.

Who it's for

Ideal for

  • Screening programmes
  • Primary care & GPs
  • Diabetes centres
  • Emergency departments
  • Paediatric clinics
  • Optometrists

Clinical uses

  • Diabetic retinopathy and large-scale eye screening
  • Primary care retinal imaging
  • Emergency room diagnostics
  • Paediatric retinal examination
  • Mobile and outreach screening

Technical specifications

Key specifications

Type
Handheld fundus camera, non-mydriatic
Field of view
50°
Sensor
12 MP, low-noise
Optics
High-Contrast Optical Design™
Focus
Smart Autofocus™
Display
Large 5″ touchscreen
Workflow
User-programmable imaging sequences, intuitive user guidance
Connectivity
Wireless DICOM, high-speed USB and WLAN, cloud connection for AI services, Optomed mobile application
Data security
AES-256 encryption, PIN code protection, user authentication
Accessories
Optomed Lumo Charging Station, Optomed Lumo Desktop Base, Optomed Travel Pack (optional)
Regulatory
Optomed Lumo camera: class IIa CE marked medical device
Charging Station and Desktop Base: class I CE marked medical devices

Source: Optomed brochure. Specifications are subject to change without notice. Open the original brochure.
