Compact Touch®

DiagnosticOphthalmic Ultrasound

Tablet-sized A/B/P ultrasound platform: B-scan imaging, biometry with IOL calculation, and pachymetry.

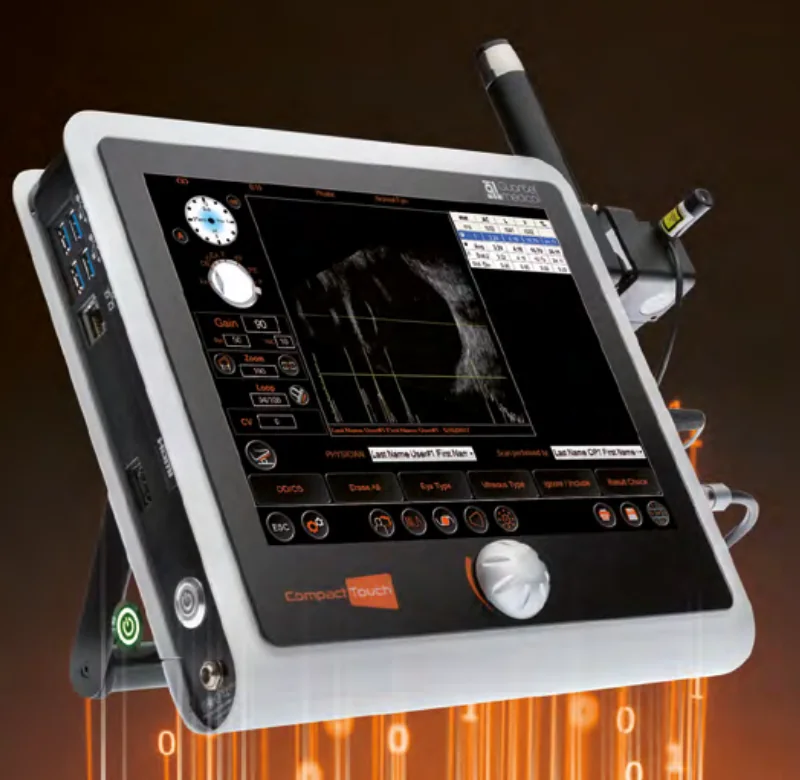

Compact Touch is a touchscreen ophthalmic ultrasound platform weighing under 4 kg. It combines a new-generation 15 MHz B-scan probe, ultrasound biometry with IOL calculation for all eye types, and optional pachymetry, with DICOM and EMR connectivity.

  • < 4 kgtotal weight
  • +30%B-scan resolution
  • 12IOL calculation formulas
Brochure PDF · 2.2 MB

Key features

  1. 01

    Sharper B-scan

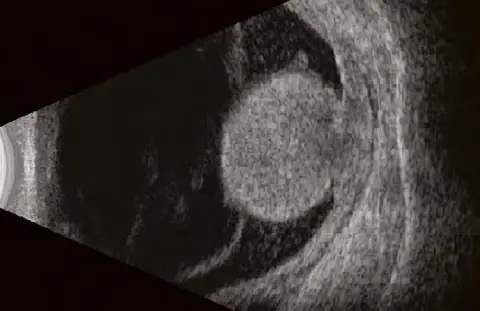

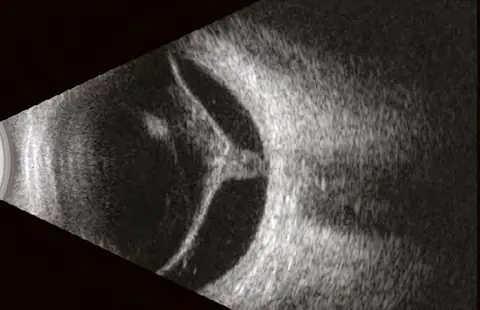

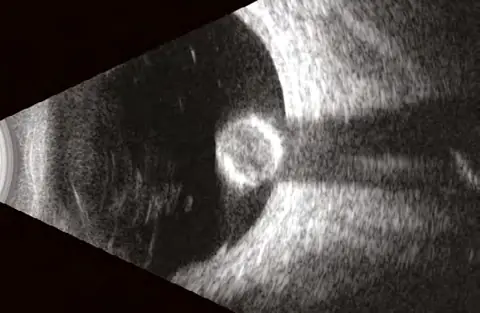

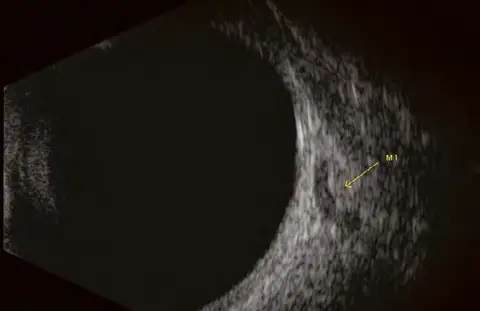

    New-generation 15 MHz B probe with 30% higher resolution for better visualization of the eye and orbit. The small probe is easy to handle.

  2. 02

    Biometry in B-mode (exclusive)

    Measures axial length exactly at the macula, even in unusual eyes such as long myopic eyes with staphylomas, while ruling out other posterior pole pathology.

  3. 03

    Biometry for every eye

    Ultrasound biometry works regardless of cataract density or media opacity, with precision similar to optical biometry (0.03 mm in immersion). 12 IOL formulas are included, with post-refractive options.

  4. 04

    ProBeam™ fixation (option)

    An exclusive biometry probe that projects a laser fixation point for the other eye, making measurement easier and more precise.

  5. 05

    Pachymetry with IOP correction (option)

    Precision of ±5 µm over a 200–999 µm range, with Ehlers, Doughty and Dresdner IOP correction tables.

  6. 06

    Truly compact

    3.5 kg, fanless and silent, with a folding carry handle. It mounts by VESA on a wall, arm or cart (option).

Who it's for

Ideal for

  • Retina specialists
  • Cataract surgeons
  • General ophthalmologists
  • Hospitals & mobile clinics

Clinical uses

  • Posterior segment and orbit B-scan imaging
  • Axial length biometry and IOL calculation
  • Biometry in dense cataract and opaque media
  • Corneal pachymetry for refractive surgery and glaucoma

Technical specifications

B mode

Grey levels
256
Adjustable gain
20 to 110 dB
Time Gain Control (TGC)
0 to 30 dB
Dynamic range adjustment
25 to 90 dB
Storage
Still images and video sequences (up to 40 seconds) on hard disk
Image post-processing tools
Calipers, areas, markers, comment

15 MHz B probe

Transducer frequency
15 MHz
Angle of exploration
50°
Depth of exploration
60 mm (2.36″)
Focus
24 mm (0.94″)
Axial resolution
115 µm
Lateral resolution
400 µm
Frame rate acquisition
Up to 16 Hz

Biometry (11 MHz probe)

Adjustable gain
20 to 110 dB
Time Gain Control (TGC)
0 to 30 dB
Transducer frequency
11 MHz
Tip diameter
7 mm (0.28″)
Electronic resolution
0.03 mm (0.002″)
Depth
60 mm (2.4″) on 1536 points
Techniques
Contact and immersion compatible
Aiming beam
LED or ProBeam™ laser pointer (option)
Axial length measurement
Ultrasound velocity adjustable per segment (anterior chamber, lens, vitreous) and for IOL and vitreous material
Built-in pattern recognition: phakic, aphakic, PMMA, acrylic and silicone pseudo-phakic eyes
Automatic standard deviation and average total length (series of 10 measurements)
Acquisition modes: automatic, auto + save, manual
Automatic detection of scleral spike
IOL calculation
SRK-T, SRK-II, Holladay, Binkhorst-II, Hoffer-Q, Haigis
Post-refractive calculation
Pre-op and post-op refraction and keratometry
6 methods for keratometric correction and implant calculation: history derived, refraction derived, contact lens method, Rosa regression, Shammas regression, Double K/SRK-T (Dr. Aramberri's formula)
IOL display
9 values bracketed for desired ametropia for each IOL (0.25 D or 0.50 D steps); simultaneous display of 4 IOL calculations

Pachymetry (option)

Transducer frequency
20 MHz
Tip diameter
1.2 mm (0.05″)
Method
Contact
Convergence
0.5 mm (0.02″) from the tip
Angle
45°
Measurement range
200 to 999 µm
Number of measurements
1 to 10
Precision
± 5 µm
Velocity
Adjustable
Methods
Central measurement or cartographic map (automatic, continuous, scanning)
Cartographic maps
User, 9C8L, 9C4L, 5C8L, 5C4L, 9C, 5C, 8L, 4L
IOP correlation tables
Ehlers, Doughty, Dresdner and unlimited user-defined tables
Bias correction
Up to 120%

Data management

Database
Built-in physician and patient database
Export
Still images and video sequences
Reports
Customisable digital and printed report
Connectivity
DICOM compatible (Worklist, Storage, Print) (option); cineloops in DICOM format; EMR compatible
Printing
Compatible with PC and USB video printers

General

Display
Back-lit LCD colour touch screen, 1024 × 768 px
Touch screen dimensions
21 cm (W) × 16 cm (H) / 8.3″ × 6.3″
Overall dimensions
26.8 cm (W) × 4.0 cm (D) × 24.6 cm (H)
10.6″ (W) × 1.6″ (D) × 9.7″ (H)
Weight
3.5 kg (7.7 lbs)
Ports
4 USB, 1 Ethernet, 1 HDMI
Power supply
100–240 Vac ±10% single phase with earth, 50/60 Hz, 60 W max
Included
Footswitch, Bluetooth mouse
Options
External PC printer (USB or Wi-Fi), USB video printer, cart, articulating arm (wall or table)

Source: Quantel Medical brochure. Specifications are subject to change without notice. Open the original brochure.
