Product sheet · Quantel Medical ABSolu

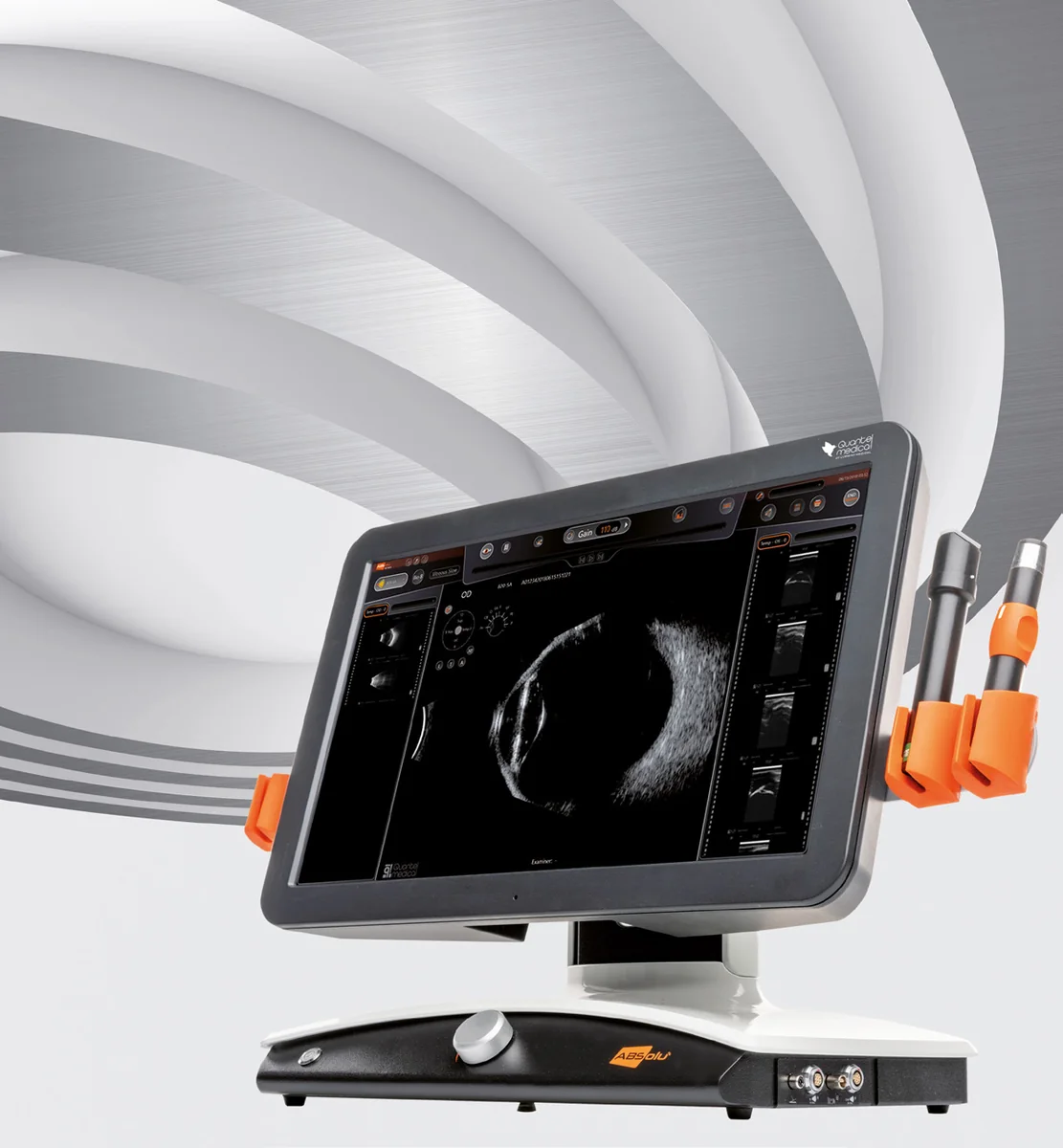

ABSolu®

Premium A/B/S/UBM ultrasound platform: whole-eye imaging, UBM for glaucoma, biometry and standardized echography.

ABSolu is Quantel Medical's top-end ophthalmic ultrasound platform. A 5-ring annular 20 MHz probe images the whole eye in exceptional detail, a 50 MHz UBM probe shows structures behind the iris for glaucoma and ICL sizing, and A-scan, B-mode biometry and standardized A-mode complete the platform. It runs on a 21″ Full HD DICOM-calibrated screen.

+70%depth of field (annular probe)
35 µmUBM axial resolution
21″Full HD DICOM display

Brochure PDF · 2.1 MB

Key features

01
Annular 20 MHz probe
Five concentric transducers in one probe give +70% depth of field and 25% better lateral resolution (250 → 200 µm), showing vitreous, retina and beyond in one scan.
02
Optimized UBM

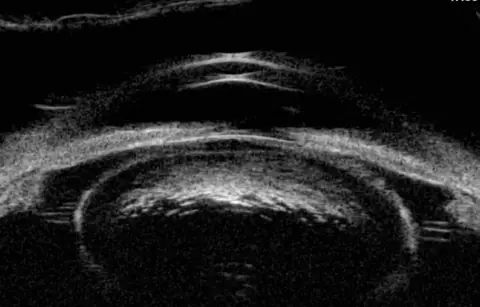

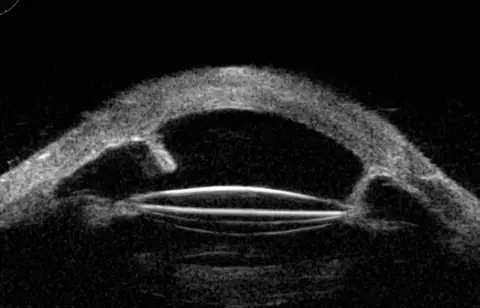

50 MHz linear-scan UBM shows structures behind the iris that other technologies cannot see. Clearscan™ compatible for fast, comfortable exams.
03
Glaucoma module
Semi-automatic angle quantification (AOD, TIA, IT, ARA, TISA, LV) to understand iris, lens and ciliary body mechanisms in glaucoma patients.
04
STS module and ICL sizing (option)
Automatic sulcus-to-sulcus, lens curvature and anterior chamber depth in a single scan. With GURU Export it sends images to the ICLguru platform for ICL sizing.
05
Patented motion sensor
The B15, B20-5A and UBM probes show the probe position on the eye and the explored area in real time (IMUv®).
06
Standardized echography (option)
The only ultrasound platform meeting Prof. Ossoinig's criteria. S-mode supports diagnosis of tumours, retinal/vitreous membrane detachment and Graves' disease.
07
DICOM-grade display
A world first in ophthalmic ultrasound: a Full HD greyscale screen compliant with DICOM part 14, for consistent, reliable image interpretation.

Who it's for

Ideal for

Clinical uses

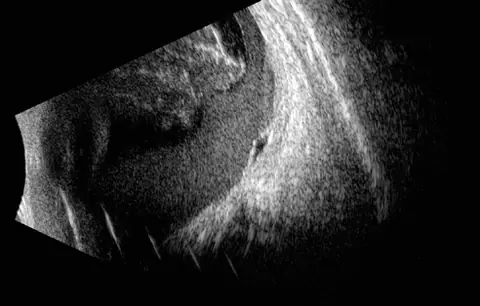

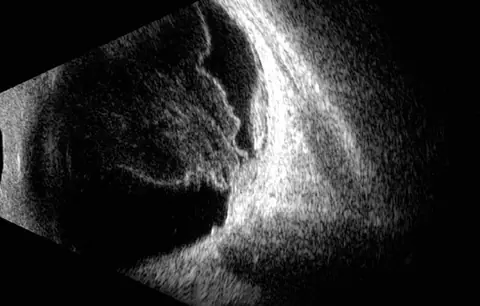

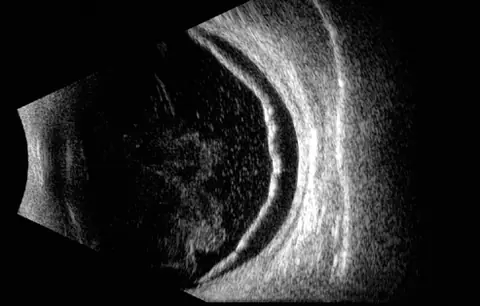

Posterior segment and orbit imaging

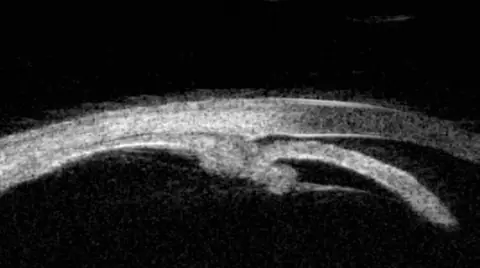

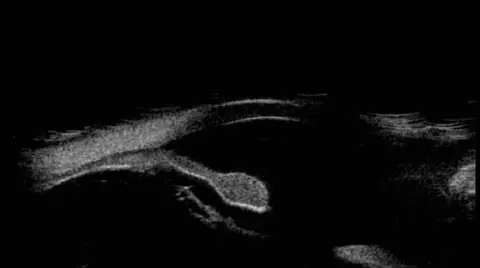

UBM of the anterior segment and angle
Glaucoma mechanism assessment (angle closure, pupillary block)
Sulcus-to-sulcus measurement and ICL sizing
Axial length biometry and IOL calculation
Tumour diagnosis and Graves' disease (standardized A-mode)

Technical specifications

B-scan modes

Grey levels: 256
Adjustable gain: 20 to 110 dB
Adjustable Time Gain Control (TGC): 0 to 30 dB
Adjustable dynamic range: 25 to 90 dB (15 and 50 MHz); 80 dB for 20 MHz 5A
Image post-processing tools: Filters (algorithm and colours), calipers, areas, angles, markers, comments
Glaucoma quantifying semi-automated tools: AOD 500 & 750, TIA, IT 750 & 2000, ARA 500 & 750, TISA 500 & 750, LV
Cineloop in B mode: Up to 400 images

Posterior pole: magnetic 15 MHz probe

Transducer frequency: 15 MHz
Angle of exploration: 50°
Depth of exploration: 60 mm (2.36″)
Focus: 24 mm (0.94″)
Depth of field: 12 mm (0.47″)
Axial resolution: 115 µm
Lateral resolution: 400 µm
Frame rate acquisition: Up to 16 Hz
Probe localization: Accelerometer – IMUv®

Posterior pole: magnetic annular 5-ring 20 MHz probe

Transducer frequency: 20 MHz – annular 5 rings
Angle of exploration: 50°
Depth of exploration: 40 mm (1.57″)
Focus: 22 mm (0.87″)
Depth of field: 20 mm (0.79″)
Axial resolution: 80 µm
Lateral resolution: 200 µm
Frame rate acquisition: Up to 16 Hz
Probe localization: Accelerometer – IMUv®

UBM & anterior segment: magnetic 50 MHz UBM probe

Transducer frequency: 50 MHz, linear scanning
Linear transducer movement: 16 mm (0.63″)
Focus: 10 mm (0.39″)
Axial resolution: 35 µm
Lateral resolution: 60 µm
Probe localization: Accelerometer – IMUv®
Options: STS module, GURU Export

Standardized A mode (option)

Amplifier: Digitally programmed S-shaped amplifier characteristics and comprehensive design criteria for standardized echography and tissue differentiation according to Prof. Dr. Karl C. Ossoinig
Tissue sensitivity: Automatic tissue sensitivity determination with specific gain value recorded
Diagnosis functions: LESION Q-I, Retina A1, Retina QII, muscle profile with optic nerve measurements
Probe frequency: 8 MHz parallel beam
Cineloop in A mode: Up to 400 images
Depth: Orbit 80 µs, eye 40 µs, zoom 20 µs
Measurement: Distance measurement between 2 gates with adjustable velocity

Biometry (11 MHz probe)

Adjustable gain: 20 to 110 dB
Adjustable TGC: 0 to 30 dB
Transducer frequency: 11 MHz
Tip diameter: 7 mm (0.28″)
Electronic resolution: 0.04 mm (0.0016″)
Depth of exploration: 40/80 mm (1.57″/3.15″) on 2048 points
Aiming beam: LED or ProBeam™ laser beam
Techniques: Contact and immersion compatible
Axial length measurement: Ultrasound velocity adjustable per segment (anterior chamber, lens, vitreous) and for IOL and vitreous material
Built-in pattern recognition: phakic, dense/long, aphakic, PMMA, acrylic and silicone pseudo-phakic eyes
Acquisition modes: automatic, auto + save, manual
Automatic detection of scleral spike
Automatic standard deviation and average total length (series of 10 measurements)
IOL calculation: SRK-T, SRK 2, Holladay, Binkhorst-II, Hoffer-Q, Haigis
Post-refractive calculation: Pre-op and post-op refraction and keratometry
6 methods for keratometric correction and implant calculation: history derived, refraction derived, contact lens method, Rosa regression, Shammas regression, Double K/SRK-T (Dr. Aramberri's formula)
IOL display: 9 values bracketed for desired ametropia for each IOL (0.25 D or 0.50 D steps); simultaneous display of 4 IOL calculations

Data management

Database: Built-in physician and patient database; no restriction on number of exams per patient
Export: Still images and video sequences
Reports: Customizable digital and printed reports
Connectivity: DICOM (option) and/or EMR compatible
Printing: Compatible with PC, USB video and DICOM printers

General

Screen: 21″ HD (1920 × 1080), greyscale display compliant with DICOM part 14
Languages: Chinese, English, French, German, Japanese, Polish, Spanish
Connections: 5 USB ports (1 on the base, 4 under the screen), HDMI and Ethernet
Computer: Windows 11 LTSC; HDD 2 TB, SSD 128 GB, RAM 16 GB
Power supply: 80–264 Vac, 47/63 Hz, 65 VA max
Overall dimensions: Height 445 mm (17.52″), depth 285 mm (11.22″), width 545 mm (21.46″) without probe holders, 840 mm (33.07″) with all probes
Weight: 11.5 kg (25.35 lbs) without probes

Source: Quantel Medical brochure. Specifications are subject to change without notice. Open the original brochure.
