GrouptekProduct sheet · OCULUS Pentacam
OCULUS

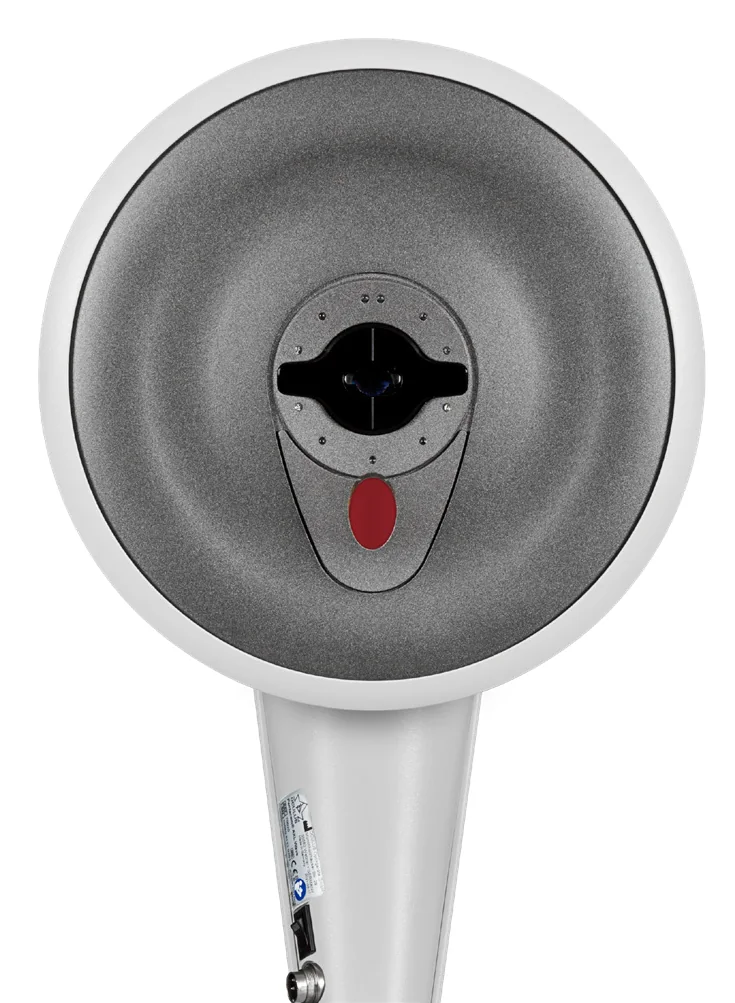

Pentacam® Family

DiagnosticTomography & Biometry

The gold standard in anterior segment tomography: Scheimpflug imaging, optical biometry, wavefront and cornea OCT in five models.

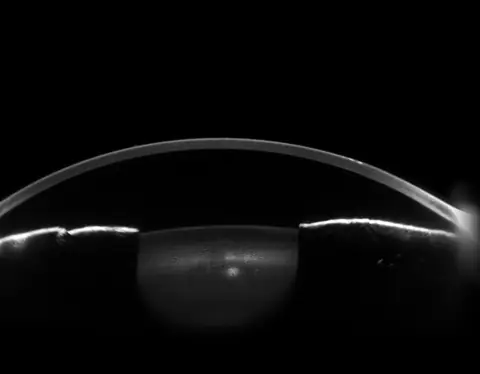

Pentacam is the reference device for analysing the cornea and anterior eye segment, made in Germany since 2002. Its rotating Scheimpflug camera measures the whole anterior segment in seconds, without contact and independent of the tear film. Depending on the model it adds optical biometry, whole-eye wavefront with objective refraction, or high-resolution cornea OCT. It is used in cataract and refractive surgery, keratoconus and CXL, contact lens fitting and myopia management.

  • 16,400+Pentacams on the market
  • 2,683PubMed publications
  • 80+countries supported
  • 5 minfull patient workflow
Brochure PDF · 5.5 MB

Key features

  1. 01

    The gold standard

    More than 16,400 Pentacams in use worldwide, referenced in 2,683 PubMed publications, and supported by OCULUS in over 80 countries.

  2. 02

    Keratoconus and CXL

    Belin ABCD Staging and Progression Displays track anterior and posterior corneal change and thinnest-point pachymetry, to guide CXL timing and post-CXL follow-up.

  3. 03

    Safer refractive surgery

    The Belin/Ambrósio Display combines anterior and posterior elevation with pachymetric progression for ectasia risk assessment, including borderline cases.

  4. 04

    Premium IOL selection

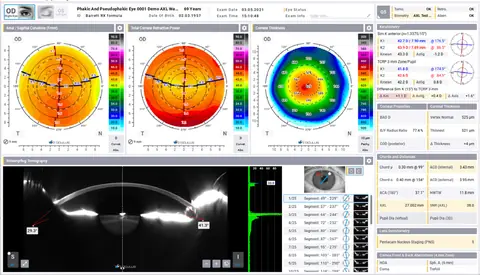

    The Cataract Pre-OP Display flags findings that may limit toric, multifocal or EDOF IOLs. Includes total corneal refractive power, IOL calculator and Barrett Rx.

  5. 05

    Scheimpflug + OCT (Cornea OCT)

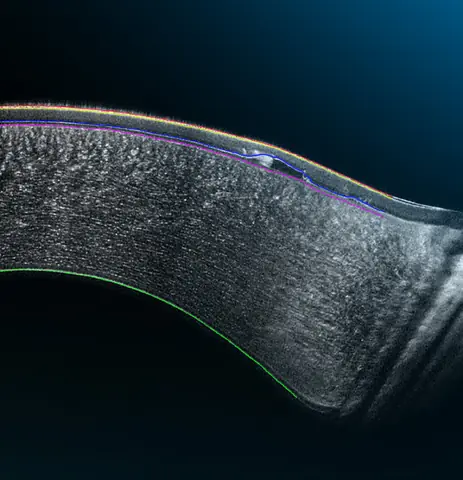

    1.9 µm ultra-high-resolution OCT over the entire cornea, taken simultaneously with Scheimpflug at identical locations, with an epithelial map and layer segmentation.

  6. 06

    Grow your premium services

    Supports premium services: refractive surgery, premium IOLs and special contact lenses. "We make 80% of our sales on premium services." (Prof. Rohit Shetty, Narayana Nethralaya)

  7. 07

    Fast workflow

    Measurement takes under 2 minutes. Measuring, assessing, educating, planning and documenting takes about 5 minutes per patient, with 40+ displays and traffic-light colour scales patients understand.

Who it's for

Ideal for

  • Cataract & refractive surgeons
  • Cornea & keratoconus specialists
  • Contact lens & scleral lens practices
  • Myopia management clinics
  • Hospitals & eye centres

Clinical uses

  • Keratoconus screening, staging and progression (CXL)
  • Ectasia risk assessment before refractive surgery
  • IOL selection and calculation, including premium IOLs
  • Rigid, ortho-k and scleral contact lens fitting
  • Myopia management (AXL / AXL Wave)
  • Glaucoma diagnostics and anterior chamber analysis

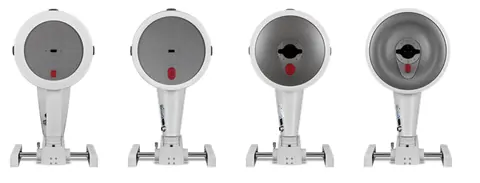

The Pentacam models

  • Pentacam®

    Scheimpflug-based tomography of the entire anterior eye segment.

  • Pentacam® HR

    High-resolution Scheimpflug tomography. The customer favourite for cataract and refractive surgery.

  • Pentacam® AXL

    High-resolution tomography plus optical biometry (contact-free axial length) for IOL calculation and myopia management.

  • Pentacam® AXL Wave

    Adds whole-eye wavefront aberrometry, objective refraction and retroillumination to AXL. The advanced choice for premium IOLs and the favourite for myopia management.

  • Pentacam® Cornea OCT

    High-resolution Scheimpflug tomography plus 1.9 µm cornea OCT with layer segmentation (tear film, epithelium, Bowman's layer, stroma+).

Which model is right for you

ApplicationCustomer favouriteAdvanced choice
Cataract surgeryPentacam® HRPentacam® AXL Wave
Refractive surgeryPentacam® HR— Not available
ScreeningPentacam®Pentacam® Cornea OCT
Contact lens fittingPentacam®Pentacam® AXL Wave / Cornea OCT
Myopia managementPentacam® AXL Wave— Not available

Technical specifications

Measurement functions by model

FeaturePentacam®HRAXLAXL WaveCornea OCT
Scheimpflug-based tomography✓ Included✓ Included✓ Included✓ Included✓ Included
High-resolution Scheimpflug tomography— Not available✓ Included✓ Included✓ Included✓ Included
Optical biometry— Not available— Not available✓ Included✓ Included— Not available
Aberrometry of the entire eye— Not available— Not available— Not available✓ Included— Not available
Objective refraction— Not available— Not available— Not available✓ Included— Not available
Retroillumination— Not available— Not available— Not available✓ Included— Not available
High-resolution OCT— Not available— Not available— Not available— Not available✓ Included

Basic software by model

FeaturePentacam®HRAXLAXL WaveCornea OCT
Fast Screening Report, 1 Large Color Map, Virtual Eye, Tomography, 4 Maps Refractive, General Overview, Anterior Segment Tomography, Topometric / KC Staging (Belin ABCD), Belin ABCD Progression Display, Iris Camera and automatic HWTW, 3D Anterior Chamber Analysis, Compare 2 Exams, Scheimpflug Image Overview✓ Included✓ Included✓ Included✓ Included✓ Included
Full Sequence Measurement✓ *✓ Included— Not available✓ Included✓ Included
Full Sequence Overview— Not available— Not available— Not available✓ Included— Not available

Optional software packages by model

FeaturePentacam®HRAXLAXL WaveCornea OCT
Screening PackageOptionalOptionalOptionalOptionalOptional
Cataract PackageOptionalOptionalOptionalOptionalOptional
Refractive PackageOptionalOptionalOptionalOptionalOptional
Contact Lens Fitting PackageOptional *Optional— Not availableOptionalOptional
Myopia Package incl. GRAS module— Not available— Not available— Not availableOptional— Not available
IOL Calculator— Not availableOptionalOptionalOptionalOptional

✓ included · Optional = optional add-on · — not available · * depending on manufacturing date

Source: OCULUS brochure. Specifications are subject to change without notice. Open the original brochure.
