OCULUS

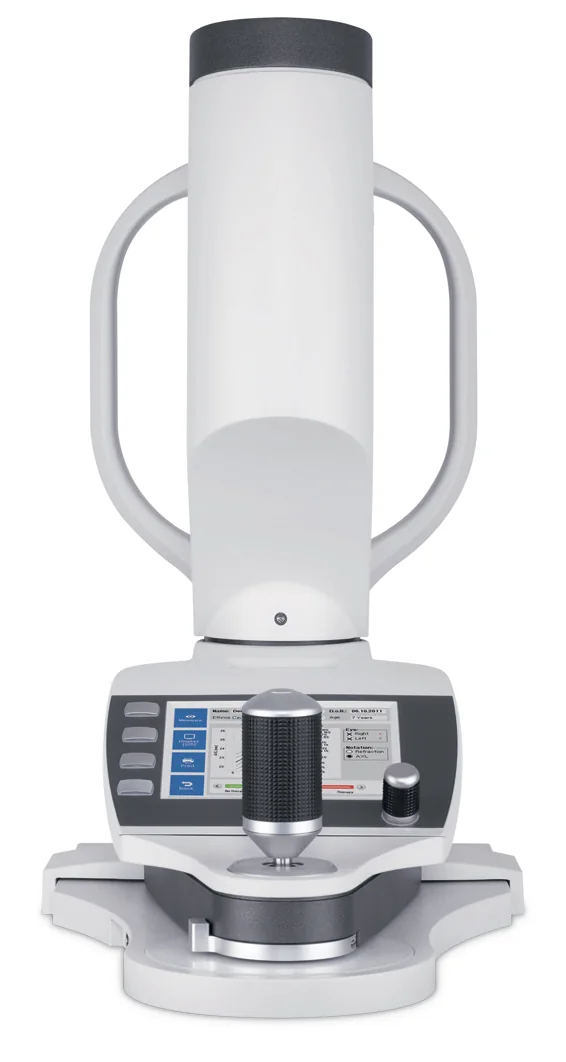

Myopia Master®

All-in-one myopia device: refraction, axial length and keratometry in one two-minute contactless measurement.

Myopia Master measures the three key values for professional myopia management (refraction, axial length and keratometry) in one contactless process taking about two minutes. Its software compares results with BHVI growth curves, assesses risk with a questionnaire, produces a parent-friendly Myopia Report and tracks treatment success over time.

~2 mincontactless measurement
0.02 mmaxial length SD
20,000+eyes in BHVI growth curves

Brochure PDF · 3.3 MB

Key features

01
Three measurements, one device
Autorefraction, axial length (measured independently of accommodation) and keratometry in a single contactless process of about 2 minutes.
02
Reproducible axial length
Standard deviation of repeated axial length measurements of about 0.02 mm. Axial length is the gold standard for detecting and managing myopia.
03

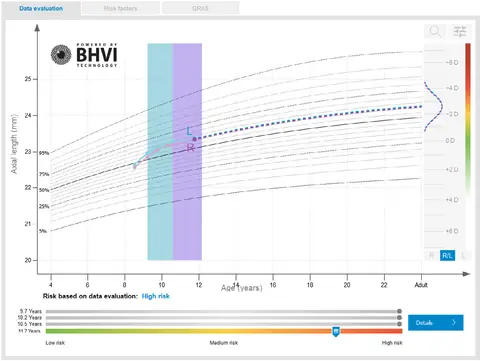

BHVI growth curves
Exclusive Brien Holden Vision Institute algorithms compare each eye with ethnicity- and gender-specific growth curves from more than 20,000 eyes.
04
Risk assessment and parent education
A customizable questionnaire on hereditary, environmental and lifestyle risk factors, based on peer-reviewed literature.
05

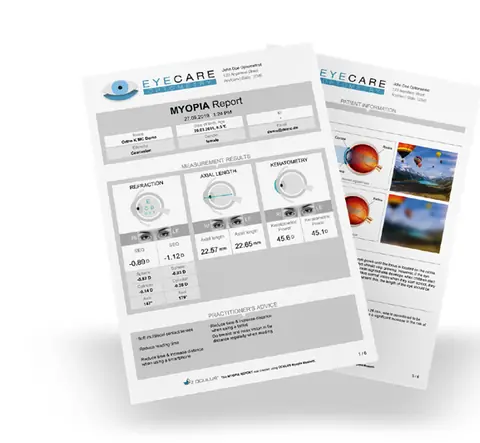

Myopia Report
One-click treatment recommendations (medication, contact lenses, lifestyle) in a clear report to email or print for parents.
06

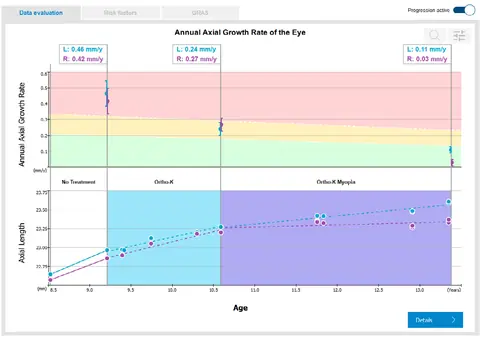

Growth analysis
Automatically calculates the axial growth rate against age-adjusted norms to show whether treatment is working. The optional GRAS module compares the eye with the Gullstrand model.

Who it's for

Ideal for

Clinical uses

Myopia detection and progression monitoring in children
Assessing the efficacy of myopia control treatments
Parent and patient education
Refraction and keratometry

Technical specifications

Axial length

Measuring range: 14 – 40 mm

Autorefractor

Vertex distance (VD): 0; 10.5; 12; 13.75; 15; 16.5 mm
Sphere: −20 to +22 D (VD = 12 mm)
Cylinder: 10 D (VD = 12 mm)
Axis: 0° to 180° (1° increments)
Minimum measurable pupil diameter: 2.5 mm
Fixation target: Hot air balloon over a landscape

Keratometer

Measuring range of radius of curvature: 6 – 10 mm

Technical specifications

Dimensions (W × D × H): 266 × 538 × 493–523 mm (10.5 × 21.2 × 19.4–20.6 in)
Weight: Approx. 12 kg (26.5 lbs)
Voltage / frequency: 100–240 V AC / 50–60 Hz
Interface: USB
Recommended computer: Intel® Core™ i5, 500 GB SSD, 8 GB RAM, Windows® 11, Intel® HD Graphics
Optional module: GRAS (Gullstrand Refractive Analysis System)

Source: OCULUS brochure. Specifications are subject to change without notice. Open the original brochure.
