GrouptekProduct sheet · Quantel Medical C.STIM
Quantel Medical

C.STIM®

TreatmentDry Eye

Intense Pulsed Light (IPL) for dry eye: patented uniform-energy handpiece, safe on phototypes I to V.

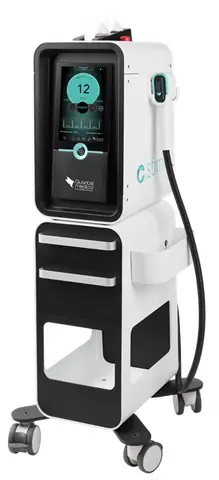

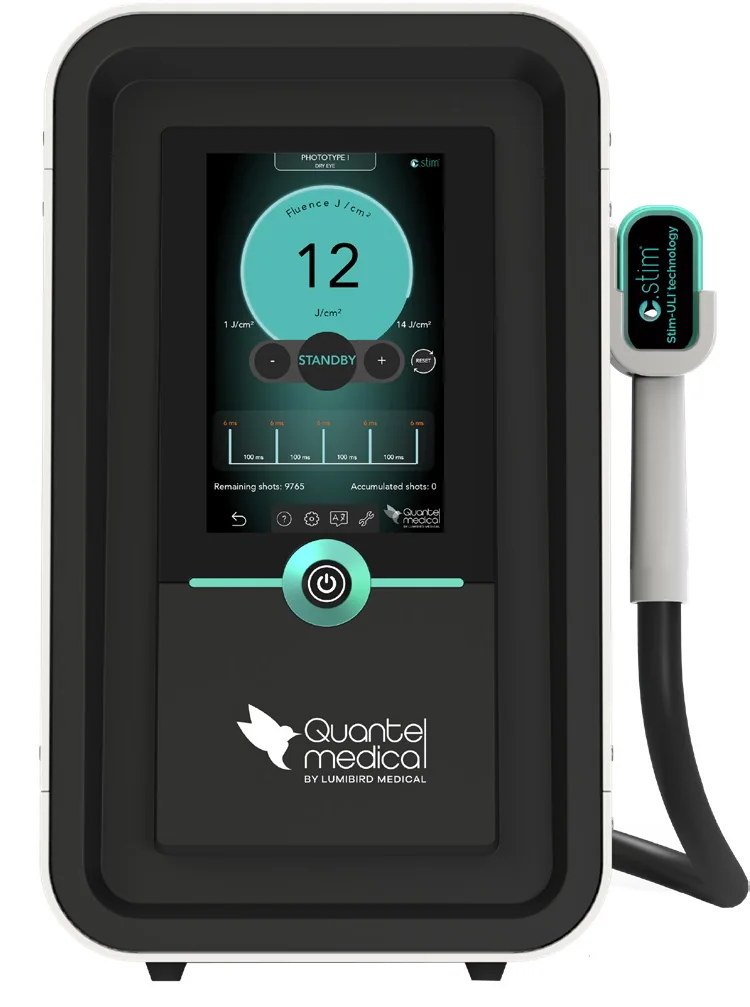

C.STIM is an ophthalmic IPL system for treating dry eye disease, mainly meibomian gland dysfunction (MGD). A patented Stim-ULI™ handpiece delivers perfectly uniform energy with no temperature peaks, and a unique 5-pulse train raises temperature progressively. Pre-set protocols by phototype make sessions fast: under 10 minutes, 3 to 4 sessions two weeks apart, with no consumables.

  • < 10 minper session
  • 3–4sessions, 2 weeks apart
  • I–Vskin phototypes
  • 0consumables
Brochure PDF · 3.6 MB

Key features

  1. 01

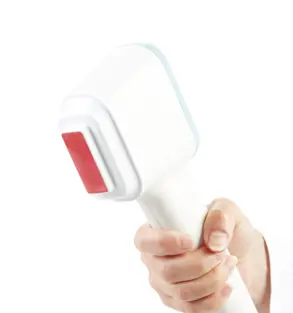

    Patented Stim-ULI™ handpiece

    Uniform Light Intensity (European Patent EP4466068) removes temperature peaks for comfort and safety, with no burn risk even on darker skin types.

  2. 02

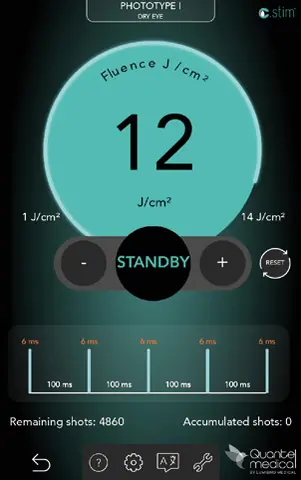

    Unique 5-pulse train

    A controlled, progressive temperature rise that respects thermal relaxation time and preserves the skin, even around the eye, on phototypes I to V.

  3. 03

    One handpiece, two tips

    Quick-attach round tip (6 mm) for small, sensitive areas and a banana-shaped tip (30 × 5 mm) for the eye contour. The banana tip is unique on the market.

  4. 04

    Consistent energy

    Integrated water cooling keeps flash lamp output consistent from the first shot to the last, session after session.

  5. 05

    Simple, fast protocol

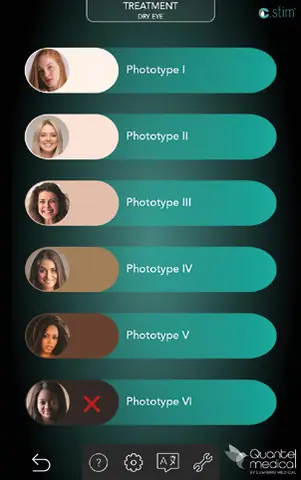

    Pre-set dry eye protocols by phototype, developed with Dr. Rolando Toyos (USA), plus manual settings for advanced users.

  6. 06

    Treats the root causes

    Stimulates meibomian and lacrimal gland metabolism, liquefies meibum for expression, reduces inflammation and decreases Demodex.

Who it's for

Ideal for

  • Dry eye clinics
  • Cornea & anterior segment specialists
  • Refractive & cataract surgeons
  • Glaucoma clinics

Clinical uses

  • Meibomian gland dysfunction (MGD)
  • Chalazion
  • Ocular surface inflammation and rosacea
  • Demodex
  • Optimizing the ocular surface before refractive or cataract surgery
  • Improving tolerance of topical glaucoma treatment and contact lens comfort

Benefits for the practice

  • Multi-action treatment offer
  • Fast, simple treatment
  • Combination treatments for long-term results
  • Better post-surgical outcomes when used before refractive or cataract surgery
  • Improved patient compliance with topical glaucoma treatment
  • Contact lenses can be worn for longer
  • No consumables

Benefits for the patient

  • Safe, effective, long-lasting treatment
  • Symptom reduction from the first session
  • Better quality of life
  • Comfortable treatment with no disruption to social life
  • Neuropathic pain relief
  • Improved contact lens comfort

Technical specifications

Technical specifications

Technology
IPL (Intense Pulsed Light)
Wavelength
610 – 1,200 nm
Fluence
1 to 14 J/cm²
Spot size
18 × 45 mm / 6 mm diameter / 30 × 5 mm
Stim-ULI™ technology
Uniform Light Intensity, European Patent EP4466068. Perfectly homogeneous energy distribution.
Filter
610 nm, anti-UVA, UVB and UVC filter
Cooling system
Water
Flash lamp
Xenon lamp
Dimensions
540 (H) × 320 (W) × 380 (D) mm
Weight
25 kg
Power supply
110/230 VAC, 50/60 Hz
Operating temperature
15 – 30 °C
Treatment duration
3 to 4 sessions
Marking
CE medical, class IIb

Source: Quantel Medical brochure. Specifications are subject to change without notice. Open the original brochure.
