GrouptekProduct sheet · Quantel Medical C.DIAG
Quantel Medical

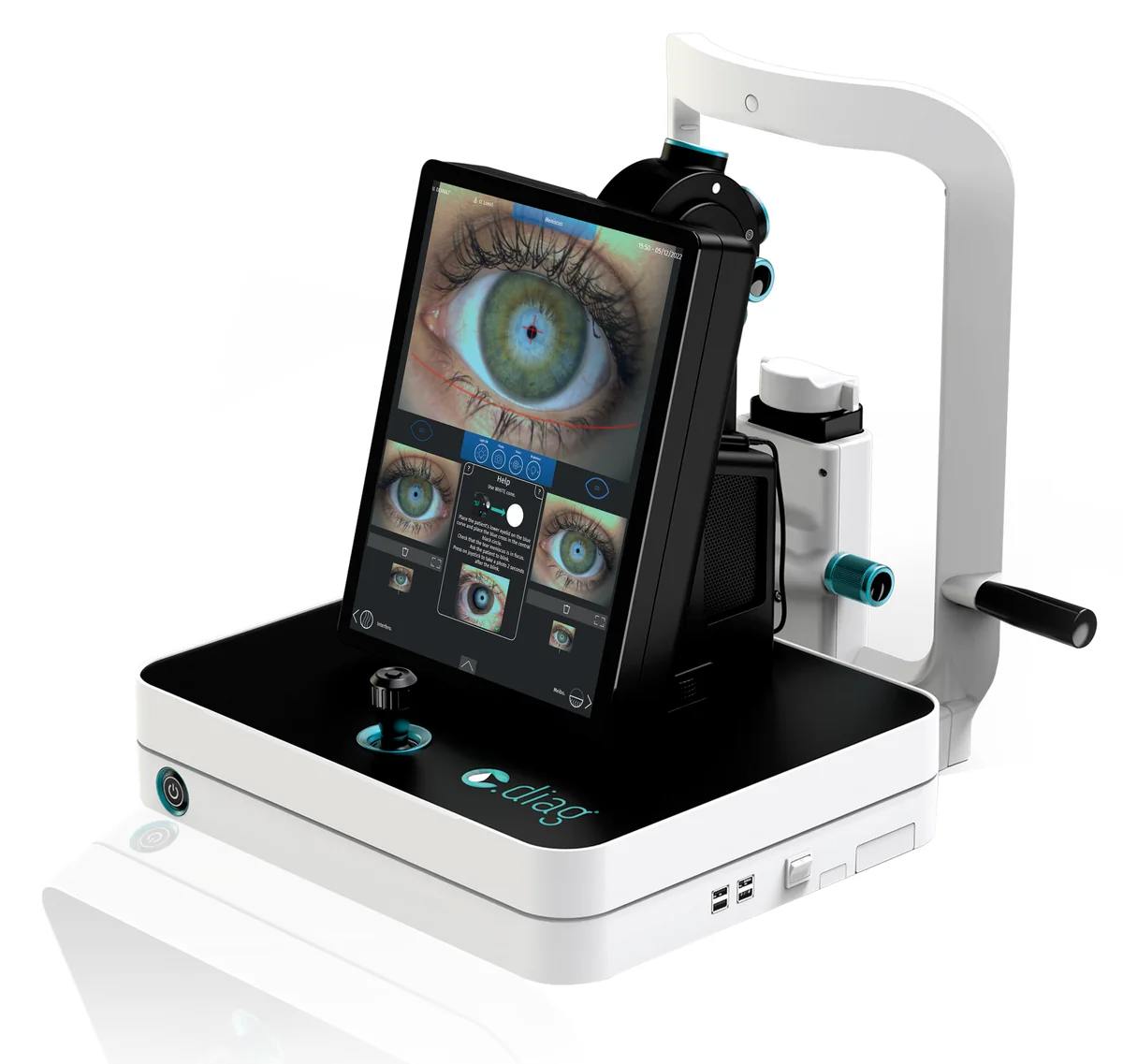

C.DIAG®

DiagnosticDry Eye

AI-assisted dry eye and ocular surface analyzer: meibography, tear film, lipid layer and more, with a one-click report.

C.DIAG is an optical imaging platform for diagnosing dry eye and ocular surface disease. Its HD auto-focus camera, multiple light sources and dedicated cones run automatic exams that qualify and quantify dry eye, with AI-assisted analysis and a one-click results report. Exams are easy to delegate to staff, and it pairs naturally with C.STIM for before and after IPL treatment.

  • 85%of dry eye patients have MGD
  • 1M+images behind the AI algorithms
  • 3configurations available
Brochure PDF · 14.6 MB

Key features

  1. 01

    Complete dry eye work-up

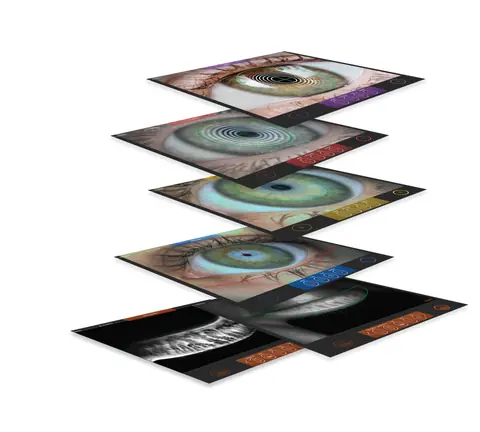

    Tear stability, blinks, lipid layer, tear meniscus, standard and transillumination meibography, and fluorescein stability, plus questionnaires and grading scales.

  2. 02

    AI-aided diagnosis

    Algorithms trained on more than a million images and clinically validated by experts. A powerful GPU gives fast results.

  3. 03

    High-quality meibography

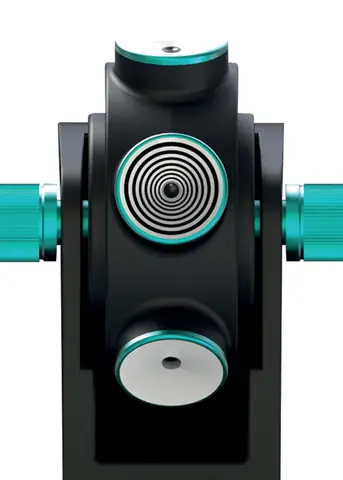

    An eyelid everter with transillumination reveals clogged glands, atrophy and telangiectasias. Meibomian gland dysfunction is found in 85% of dry eye patients.

  4. 04

    Easy to delegate

    Large HD touchscreen and joystick, customizable exam protocols, a fast workflow, and a chin rest that rotates to fit every face, with an adaptor for children.

  5. 05

    Before and after IPL

    Documents results before and after C.STIM IPL treatment, helping show patients their progress.

  6. 06

    Connected

    DICOM worklist, Wi-Fi, Bluetooth, Ethernet and remote service diagnostics.

Who it's for

Ideal for

  • Dry eye clinics
  • Cornea & anterior segment specialists
  • Refractive & cataract surgeons
  • Optometrists

Clinical uses

  • Dry eye disease diagnosis and grading
  • Meibomian gland dysfunction (MGD) assessment
  • Pre-operative ocular surface assessment (refractive, cataract)
  • Follow-up before and after IPL treatment

Three configurations

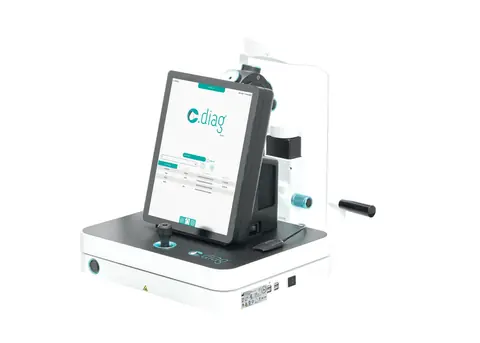

  • Standard

    C.DIAG on its own: 500 × 500 × 500 mm, 15 kg.

  • With patient screen

    Adds a 10.1″ secondary screen so the patient can watch the exam, which helps with education.

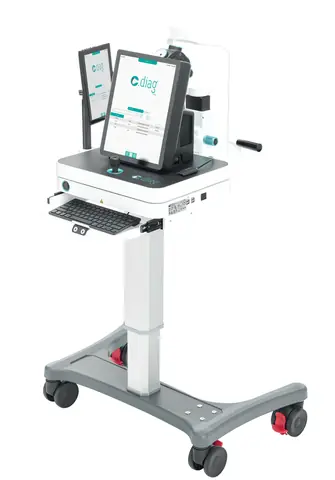

  • With examination table

    Mounted on a dedicated examination table with a keyboard drawer.

Technical specifications

Technical specifications

Type
Optical imaging platform for ocular surface diagnosis
Image resolution
Up to 3088 × 2076 px
Acquisition mode
Photo or video
Light source
White LED, blue LED, infrared LED
Yellow filter
Yes
Focus
Automatic or manual
Exams
Tear stability, blinks, lipid layer, tear meniscus, standard meibography and transillumination meibography, fluo stability, generic
Questionnaires
Triage (TFOS DEWS II™), symptoms (OSDI©, SPEED™, DEQ-5)
Grading scales
Efron, Oxford, Guillon, Pult
Eyelid everter
Standard meibography and transillumination meibography
DICOM
Import patient worklist
Connection
4 USB ports, 1 Ethernet port, 1 HDMI port, Wi-Fi, Bluetooth
Screen
Colour touch screen 15″
Computer
1 TB SSD, Windows® 10 Enterprise
Operating temperature
15–30 °C
Power supply
110/230 VAC, 50/60 Hz, 500 VA
Dimensions
Standard configuration: 500 (W) × 500 (H) × 500 (D) mm / 19.68″ × 19.68″ × 19.68″
With secondary screen: 600 (W) × 500 (H) × 500 (D) mm / 23.62″ × 19.68″ × 19.68″
Weight
15 kg (33.07 lbs)
Optional accessories
Secondary screen for exam visualization by the patient (10.1″), examination table with keyboard drawer

Source: Quantel Medical brochure. Specifications are subject to change without notice. Open the original brochure.
