GrouptekProduct sheet · OCULUS Twinfield 3
OCULUS

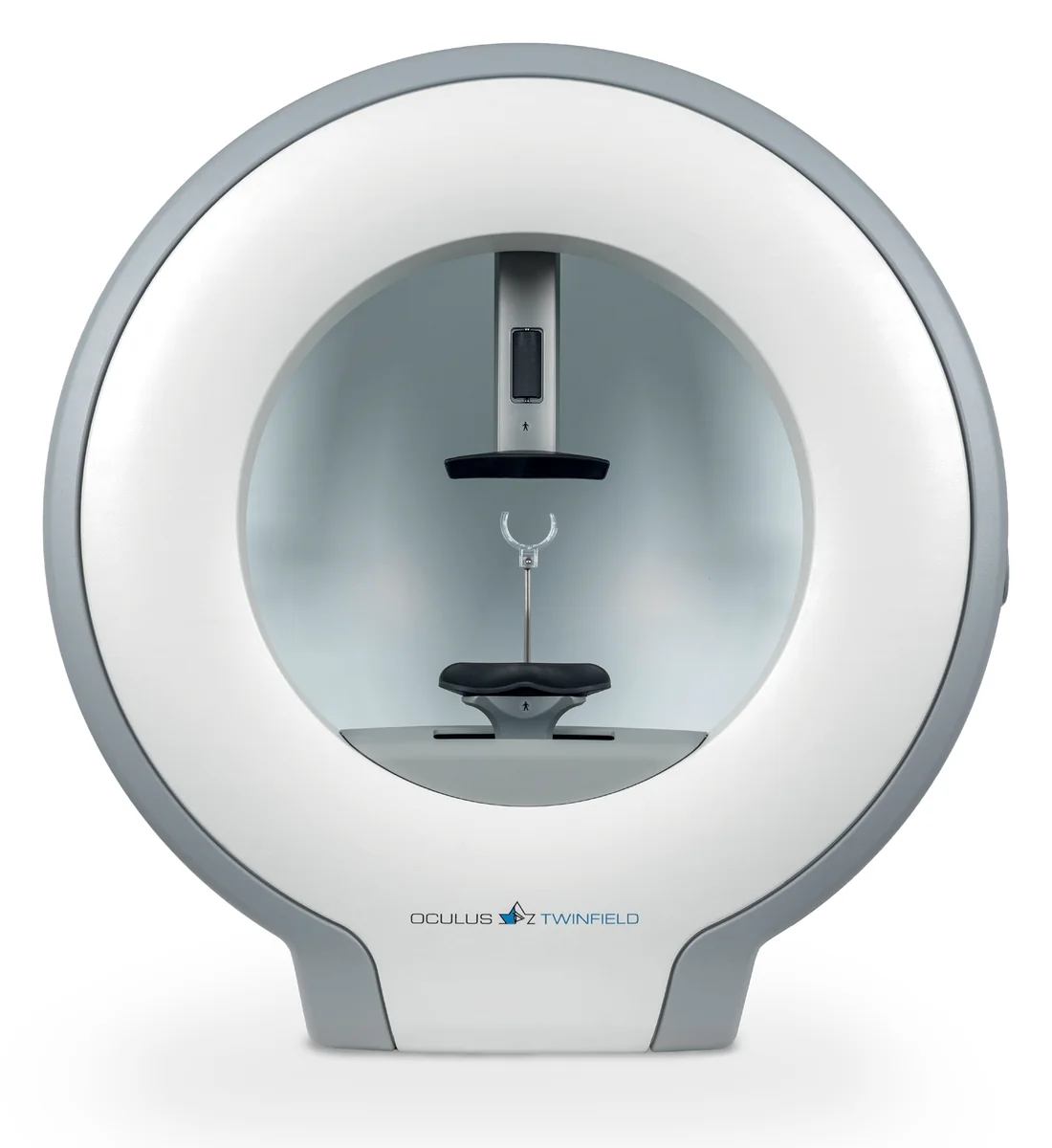

Twinfield® 3

DiagnosticVisual Field Testing

Full-field bowl perimeter for static and kinetic visual field testing, with glaucoma analysis built in.

Twinfield 3 is the latest OCULUS bowl perimeter, for glaucoma management, neurological diagnosis and expert opinions such as driving licence assessments. It covers the full 90° field with both static and Goldmann-style kinetic perimetry, and its new software reads data from earlier Twinfield models so no follow-up history is lost.

  • 90°full-field eccentricity
  • ≤ 3 minper eye with SPARK
  • ~40 sSPARK initial assessment
Brochure PDF · 9.0 MB

Key features

  1. 01

    Static and kinetic in one device

    Threshold and suprathreshold static tests plus manual, assisted and automated kinetic perimetry with all Goldmann stimulus sizes, out to 90° full field.

  2. 02

    Fast glaucoma testing with SPARK

    SPARK measures the central field in four phases, at most 3 minutes per eye, with a first result in about 40 seconds. High repeatability makes it suited to progression monitoring.

  3. 03

    Glaucoma decision tools

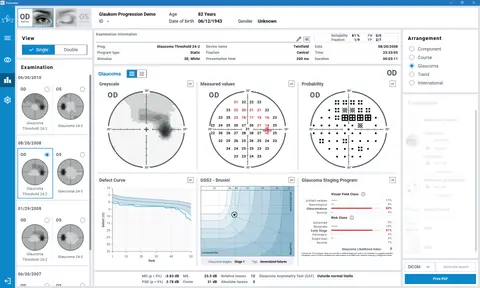

    Glaucoma Staging System (GSS 2), Glaucoma Staging Program (GSP) risk assessment, cumulative defect curve and Threshold Noiseless Trend (TNT) progression analysis.

  4. 04

    Easier for patient and staff

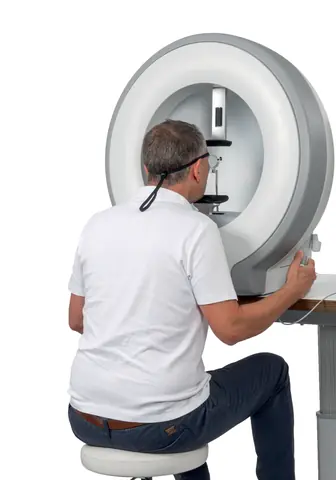

    Pre-recorded audio instructions in several languages, a motorized chin rest synchronized with the headrest, and step-by-step on-screen guidance.

  5. 05

    Keeps historical data

    The redesigned software is compatible with data from previous Twinfield models. It supports EMR integration and optional DICOM.

  6. 06

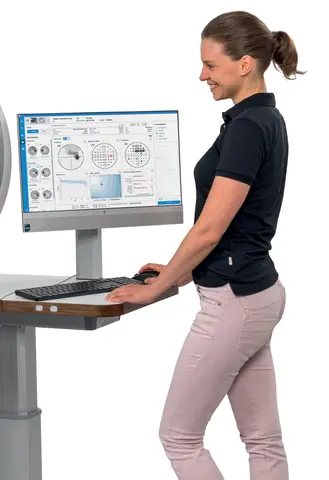

    Flexible installation

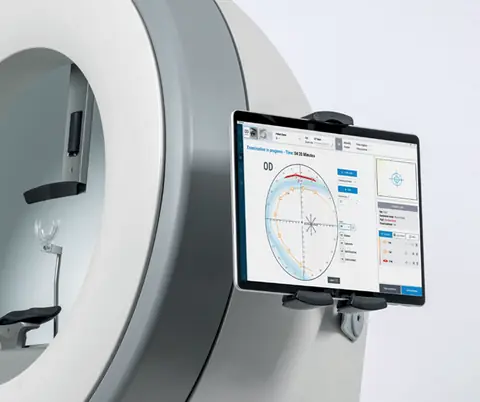

    Multiple table options, or use an existing ophthalmic table. An optional tablet mount is available.

Who it's for

Ideal for

  • Glaucoma clinics
  • Neuro-ophthalmology
  • General ophthalmologists
  • Driving licence and expert assessments

Clinical uses

  • Glaucoma diagnosis and progression monitoring
  • Neurological visual field defects
  • Driving licence regulation screening
  • Blind spot and scotoma mapping
  • Macular field testing

Technical specifications

Static perimetry

Programs
Glaucoma, macula, neurological, driver's licence regulation screening
Static-kinetic screening and user-defined tests
Test patterns
Physiological patterns (Area 1–8), orthogonal patterns (30-2, 24-2, 30x24, 10-2), Esterman, user-defined patterns
Test strategies
Threshold strategies: OCULUS Fast Threshold, Full Threshold (4/2)
Optional: SPARK strategy, CLIP strategy
Suprathreshold strategies: OCULUS Class Strategy, 2-zone, 3-zone, defect quantification
Examination speed
Adaptive, fast, normal, slow, user-defined
Fixation control
Through central threshold, Heijl-Krakau (using the blind spot), live video image
Perimeter bowl radius
300 mm
Max. eccentricity
90° (full field)
Stimulus sizes / colour
Goldmann I–V / white, blue, red
Stimulus duration
200 ms, user-defined
Stimulus luminance range / steps
0–3180 cd/m² (0–10 000 asb) / 1 dB
Background luminance / colour
10 cd/m² / white | 100 cd/m² / yellow
Optional reports
Glaucoma Staging Program (GSP), Threshold Noiseless Trend (TNT) progression report

Kinetic perimetry

Measurement methods
Automatic: examination along meridians with freely selectable distances

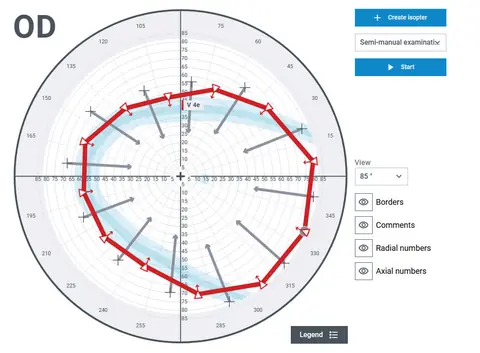

Optional: Goldmann manual kinetic testing including computer-mouse freely moveable stimulus, assisted kinetic testing along a manually defined path, and scotoma mapping
Stimulus speed
2°/s (Goldmann standard) or user-defined

Technical specifications

Patient positioning
Motorized chin rest synchronized with adjustable forehead rest
Pupil measurement
Automated and manual
Dimensions (W × D × H)
748 × 592 × 787 mm (29.4 × 23.3 × 31.0 in), without table
Weight
29 kg (without table and computer components)
Max. power consumption
45 W (without table and computer components)
Voltage / frequency
100–240 V AC / 50–60 Hz
Recommended computer
Intel® Core™ i5, 500 GB SSD, 8 GB RAM, Windows® 11, Intel® HD Graphics
Recommended monitor resolution
1920 × 1080 pixels (Full HD)
Interface
USB-A, USB-C
Software
Device control, patient management, backup and printing software (Windows®), integrated network operation, easy EMR integration, DICOM (optional)

Source: OCULUS brochure. Specifications are subject to change without notice. Open the original brochure.
