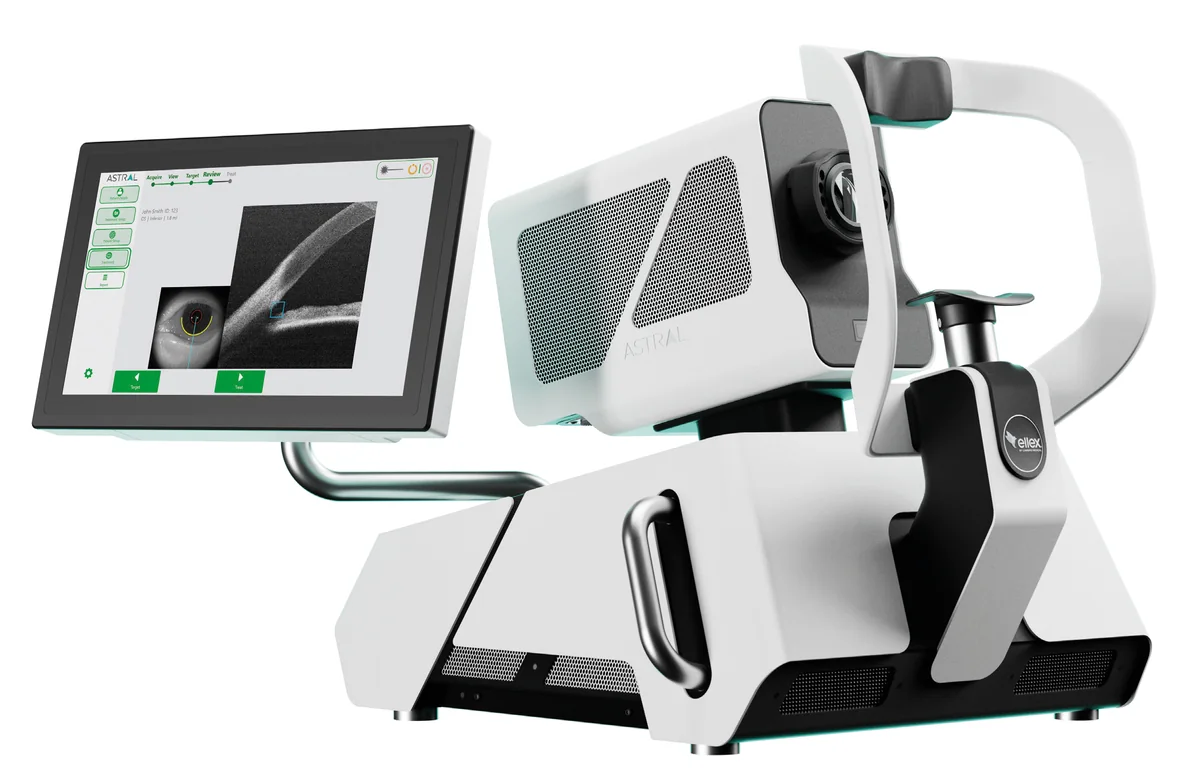

ASTRAL®

SLT laser with built-in OCT: see the trabecular meshwork, then treat lens-free in under three seconds.

ASTRAL is a selective laser trabeculoplasty (SLT) platform with an integrated OCT visualization system. It shows 120 radial OCT views of the iridocorneal angle so the clinician can target the trabecular meshwork accurately, then treats transsclerally with no contact lens and no gel.

< 3 streatment time
120radial OCT views of the angle
69.8%of SLT patients drop-free at target IOP (LiGHT)
0contact lens or gel needed

Brochure PDF · 6.6 MB

Key features

01
OCT-guided targeting

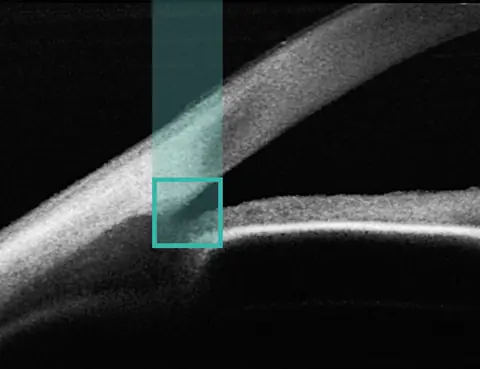

120 cross-sectional radial OCT views of the anterior chamber. ASTRAL Intelligence shows the matching OCT for each potential treatment location.
02
Lens-free and gel-free
Gentle non-contact transscleral delivery. No sustained blurred vision, so patients return to daily activities within minutes.
03
About 15 seconds per patient
Locate and focus ~7 s, acquire OCT ~5 s, treat in under 3 s, with outcomes comparable to traditional SLT.
04
More patients, lower cost
A streamlined setup and workflow means more glaucoma patients treated per hour, at a lower cost per treatment.
05
SLT is first-line
Recommended as a first-line glaucoma treatment by AAO, EGS, APGS and WGA after the LiGHT trial.
06
Comfortable for both sides

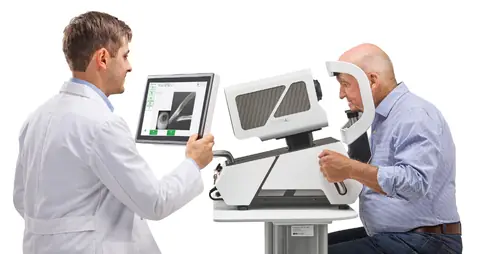

15.6″ HD touchscreen on a 270° articulated arm lets the clinician sit beside the patient. A forward-angled headrest improves fixation.

Who it's for

Ideal for

Clinical uses

Open-angle glaucoma (OAG)
Ocular hypertension (OHT)
Selective laser trabeculoplasty (SLT)

Technical specifications

SLT laser

Type: Q-switched frequency-doubled Nd:YAG
Wavelength: 532 nm
Energy: Adjustable 1.1–1.9 mJ
Burst mode: Single pulse only
Spot size: 400 µm
Beam divergence: ≤ 0.031 radians
Maximum repetition rate: 50 Hz
Pulse width / duration: 3 ns ± 20%
Nominal Ocular Hazard Distance (NOHD): 40.8 m
Cooling: Air cooled

OCT module

Line sensor type: InGaAs
Number of pixels: 1024
Pixel height: 250 µm
Pixel pitch: 12 µm
Maximum line rate: 40 kHz
Digital output format: 16 bit GigE

Common features

Weight: 38 kg
Dimensions (H × W × D): 530 × 680 × 850 mm
Screen: Color touch screen, 15.6″ HD, 1920 × 1080, on an articulated arm rotatable through 270° around the platform
Computer: PC tablet, Windows 11 IoT
Network connectivity: LAN connection, DICOM compatible
Power supply: 100–240 VAC single phase, 50/60 Hz, 300 W
Operating conditions: +15 °C to +35 °C / 35% to 85% relative humidity, non-condensing
Storage and transport: −10 °C to +55 °C / 10% to 85% relative humidity, non-condensing
Standard accessories: Safety glasses, laser safety sign, dust cover

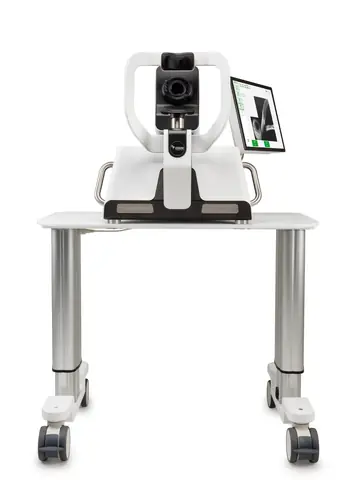

Optional accessories: Motorised height-adjustable table

Source: Ellex brochure. Specifications are subject to change without notice. Open the original brochure.
